5.0 Network Conguration
5.2 Using CAN Network with No Central Controller
(master/slave operation)
One of the 60XX series monitors can be used as the controller.
It can activate the ventilation for all the sensors, or a group. The
use of a dedicated controller is optional; - to add a display in
some specic location, such as before entering a mechanical
room or to interface with several fan starters located in one
place. Starters and air dampers are connected to the sensor
closest to it in each zone.

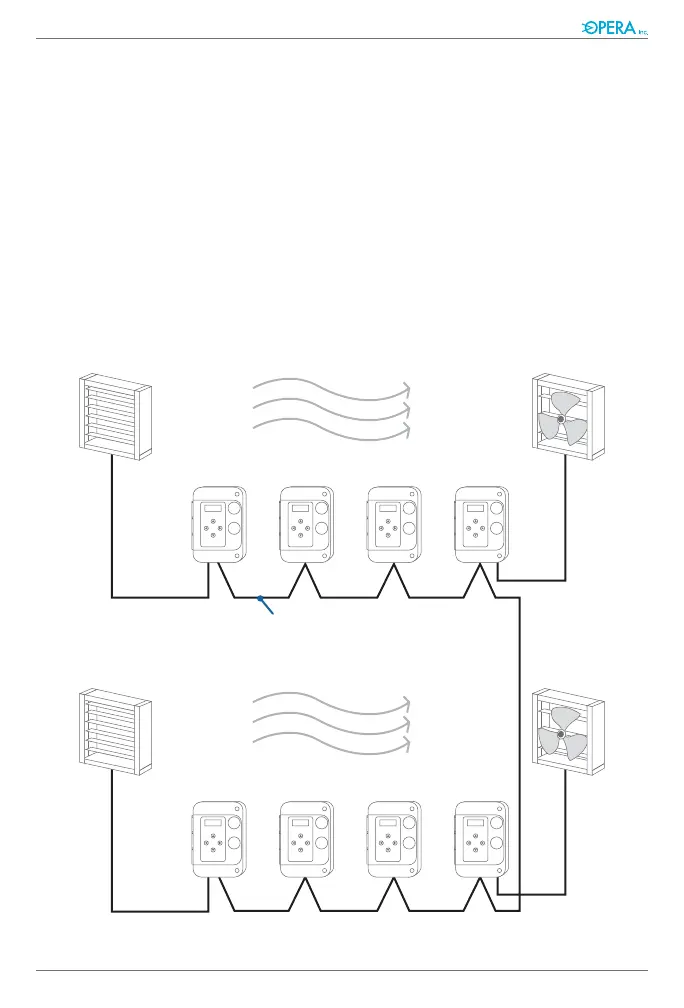

60xx 60xx 60xx 60xx
60xx 60xx 60xx 60xx
Zone 1
Zone 2
24 Vac; 2 conductor 18-20 AUG
CAN; 2 conductor shielded 22-24 AUG
