10
Installation on door frame: if the handle function is not necessary, the
solenoid bolt can be installed on the door frame. The use of a cable cover for
connecting wires is not required in this case.
In case the handle is required, the solenoid bolt must be mounted on
the door, using an appropriate cable cover (e.g. item 08600).
(67/87)
(67/87)
154
105
23
42
27.5
27.5
10
10

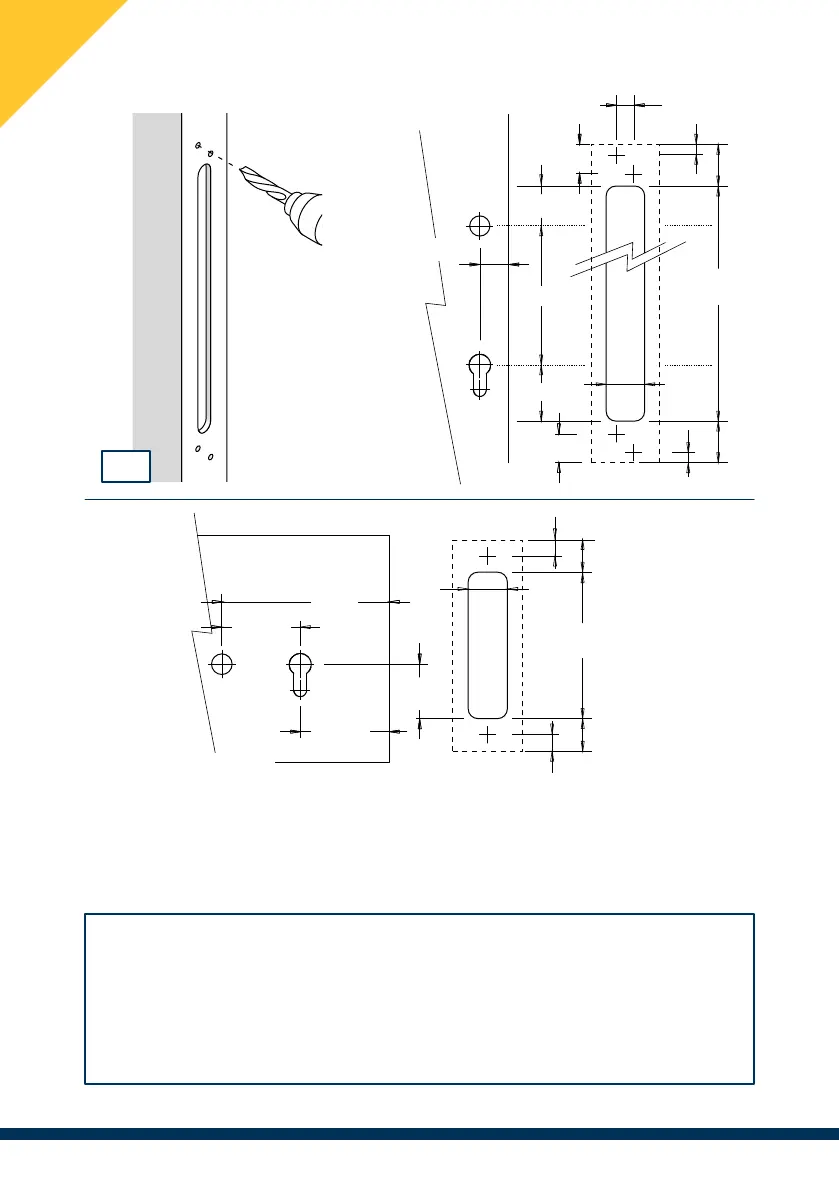

(3) Drill holes for the installation of the solenoid bolt according to the diagram
corresponding to the product to be installed.
Thoroughly clean the inside of the casing from chips and dirt.
PRIMA
CLASSICA
45.5
33
23
255
32.5
32.5
8
8
23
23
14
3
Drilling dimensions for solenoid locks
(22/27/32/60)
176.5
