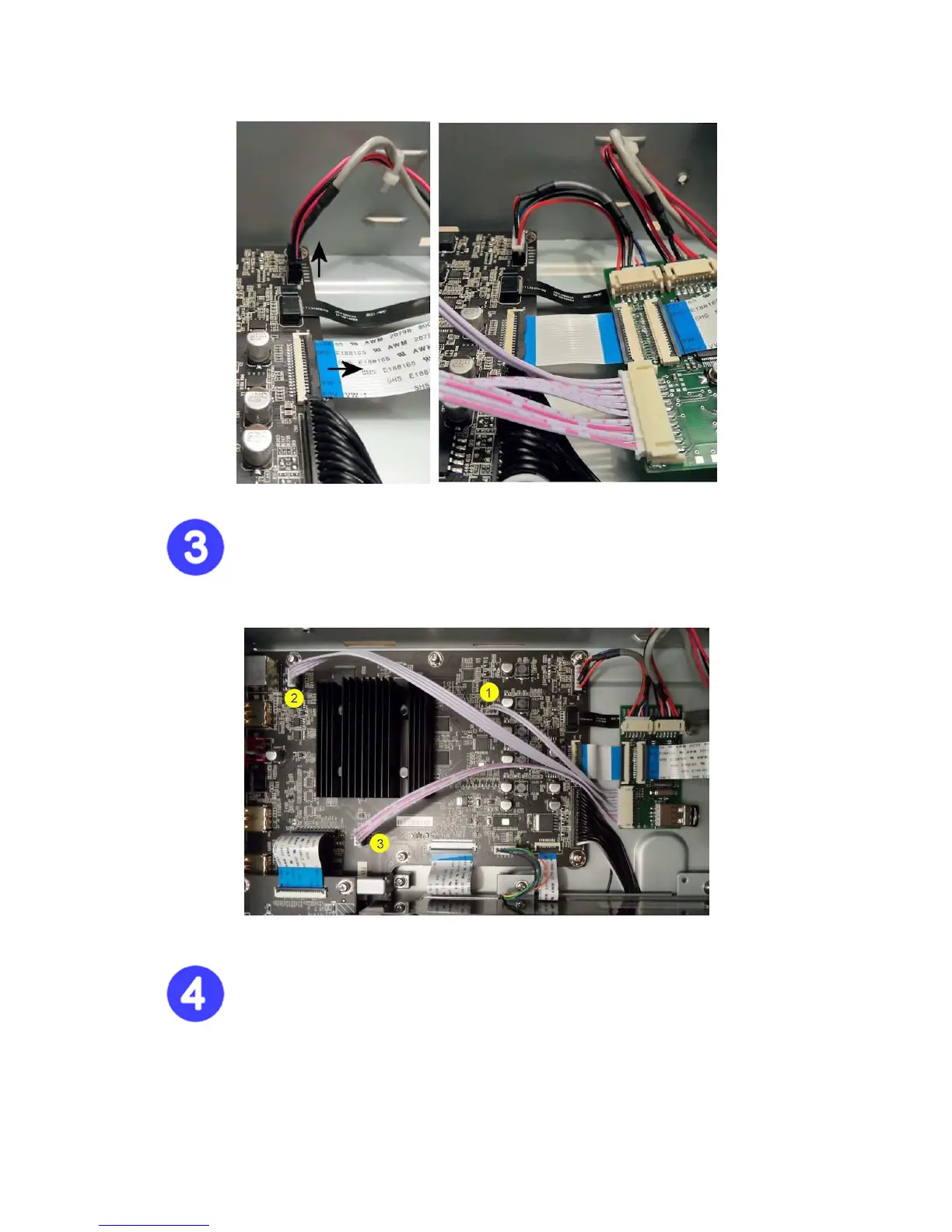

Figure 3
Connect the cables, start with the small flatcable between the Oppo board and the kit.
When all cables are attached, lift the kit so it is possible to remove the protective paper
from the double adhesive tape on the backside of the kit. Align the kit with the use of
the small flatcable, and attach the board to the bottom of the chassis.
Figure 4
Attach the 3 cables as shown in figure 4. Please note that all these cables must be
inserted properly before powering up the player. Cable 2 is the longest of the three
cables. They should not be removed or inserted with mains power to the player.
