Technical data and exploded views
- 9 -
optek-Manual--1004-2006-02--TF16-US-2011-06-20
www.optek.com

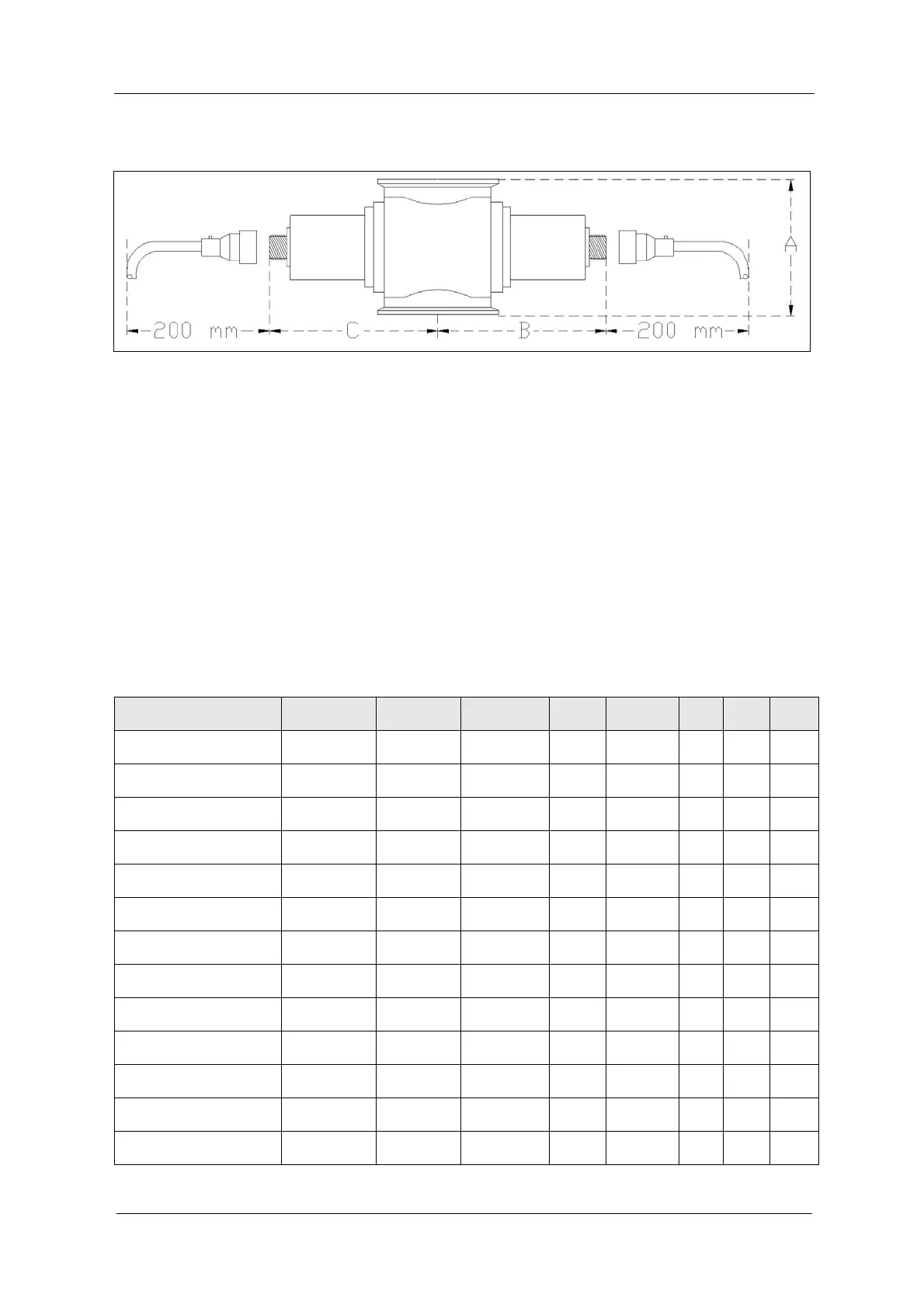

Fig. 3 Schema for determining dimensions
• A = installation height (in mm)
• B = installation length detector side (in mm)
• C = installation length lamp side (in mm)
Table 3 indicates a part of our extensive range of sensor bodies. Other sensor
bodies with diverse process connections and made of many other materials are
available (see table 1 on page 7 and table 2 on page 8).
Detailed technical information is given in the instruction manual "Sensor bodies
according to Pressure Equipment Directive, Module E1" of the corresponding
sensor body.
Moreover, Varivent adapters are available in different line sizes to allow quick
and easy adaptation to pipelines.
Tab. 3 Sensor dimensions in dependence of specifications of standard sensor body
Process connection Part.-No. Material Design
Line
size
OPL A-A*)
[mm]
A
[mm]
B
[mm]
C
[mm]
NPT Female thread
(ASME B1.20.1)
0120-1104-03
1.4571 /
SS 316 Ti
1" 40 96 160 195
Female thread
(DIN ISO 228/1-G)
0120-1103-03
1.4571 /
SS 316 Ti
1" 40 96 160 195
Clamp
(ISO 2852-1993)
0120-1102-28 SS 316 L 1" 40 96 160 195
Clamp
(ISO 2852-1993)
0120-1302-28 SS 316 L 1.5" 40 106 160 195
Clamp
(ISO 2852-1993)
0120-0402-28 SS 316 L 2" 40 112 160 195
Sanitary thread SC
(DIN 11851)
0120-1101-03
1.4571 /
SS 316 Ti
welded DN 25 40 125 160 195
Sanitary thread SC
(DIN 11851)
0120-1301-03
1.4571 /
SS 316 Ti
welded DN 40 40 125 160 195
Sanitary thread SC
(DIN 11851)
0120-0401-03
1.4571 /
SS 316 Ti
welded DN 50 40 125 160 195
Sanitary thread SC
(DIN 11851)
0120-0501-03
1.4571 /
SS 316 Ti
welded DN 65 50 140 165 200
Sanitary thread SC
(DIN 11851)
0120-0601-03
1.4571 /
SS 316 Ti
welded DN 80 50 180 165 200
Sanitary thread SC
(DIN 11851)
0120-0701-03
1.4571 /
SS 316 Ti
welded DN 100 60 200 170 205
Flange
(ASME B16.5 RF, 150 lbs)
0120-1106-03
1.4571 /
SS 316 Ti
welded 1" 40 150 160 195
Flange
(ASME B16.5 RF, 150 lbs)
0120-1306-03
1.4571 /
SS 316 Ti
welded 1.5" 40 150 160 195
