Controls and Indicators
DS-I 1-3k UPS User Manual
3
REC
Rectifier indicator:
green--rectifier is normal,
green flicker--rectifier is starting,
dark—rectifier is not working
5
Inv
Inv indicator:
green--inverter is normal
green flicker--inverter is starting or tracking with bypass(ECO)
dark—inverter is not working
2
BYP
Bypass indicator:
yellow—bypass is normal
dark—bypass is not working
4
BAT
Battery indicator:
yellow—battery discharge or charged
yellow flicker—battery is not connected, battery is low or charger is
failure
dark—battery is connected
1
2
3
4
5

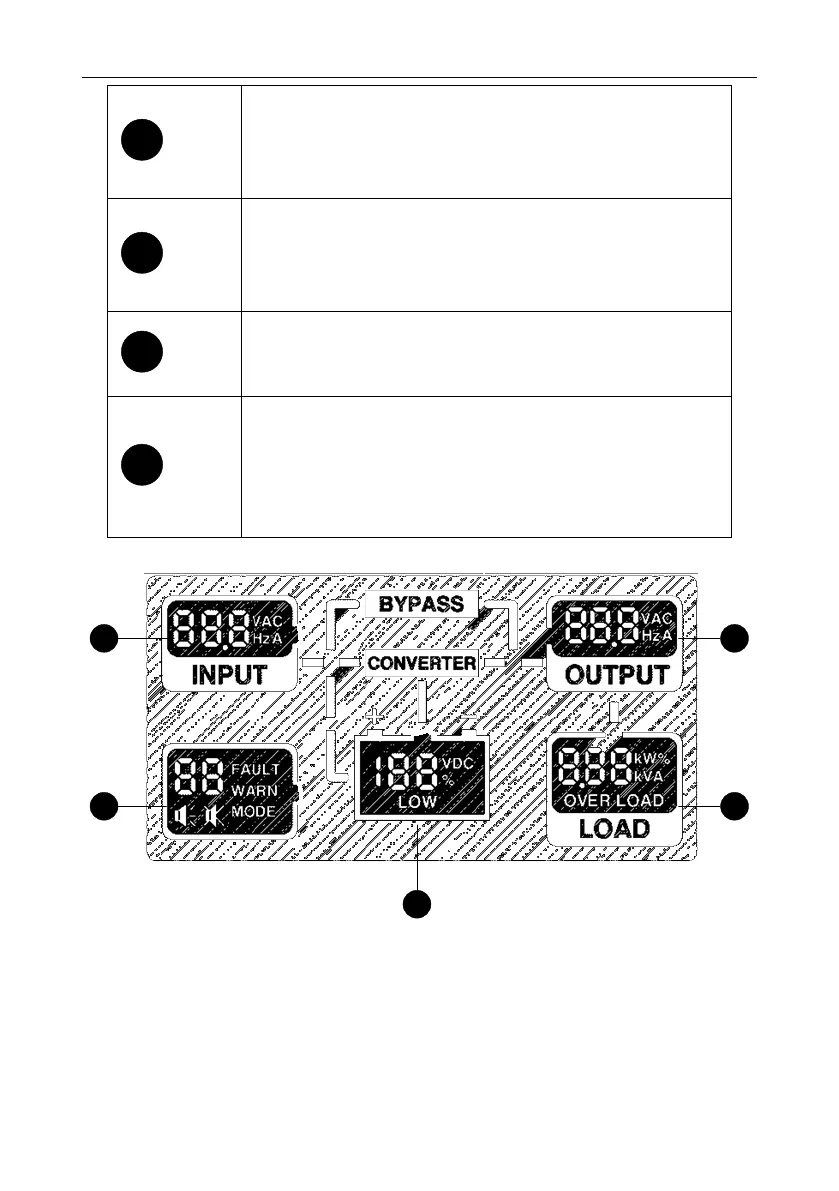

Fig 6. LCD Main Menu
