4
Installation
Fan mount (front / side)
If the unit is placed in a narrow space or in the ridge of a gable, place the fan outlet on the short
side of the unit.

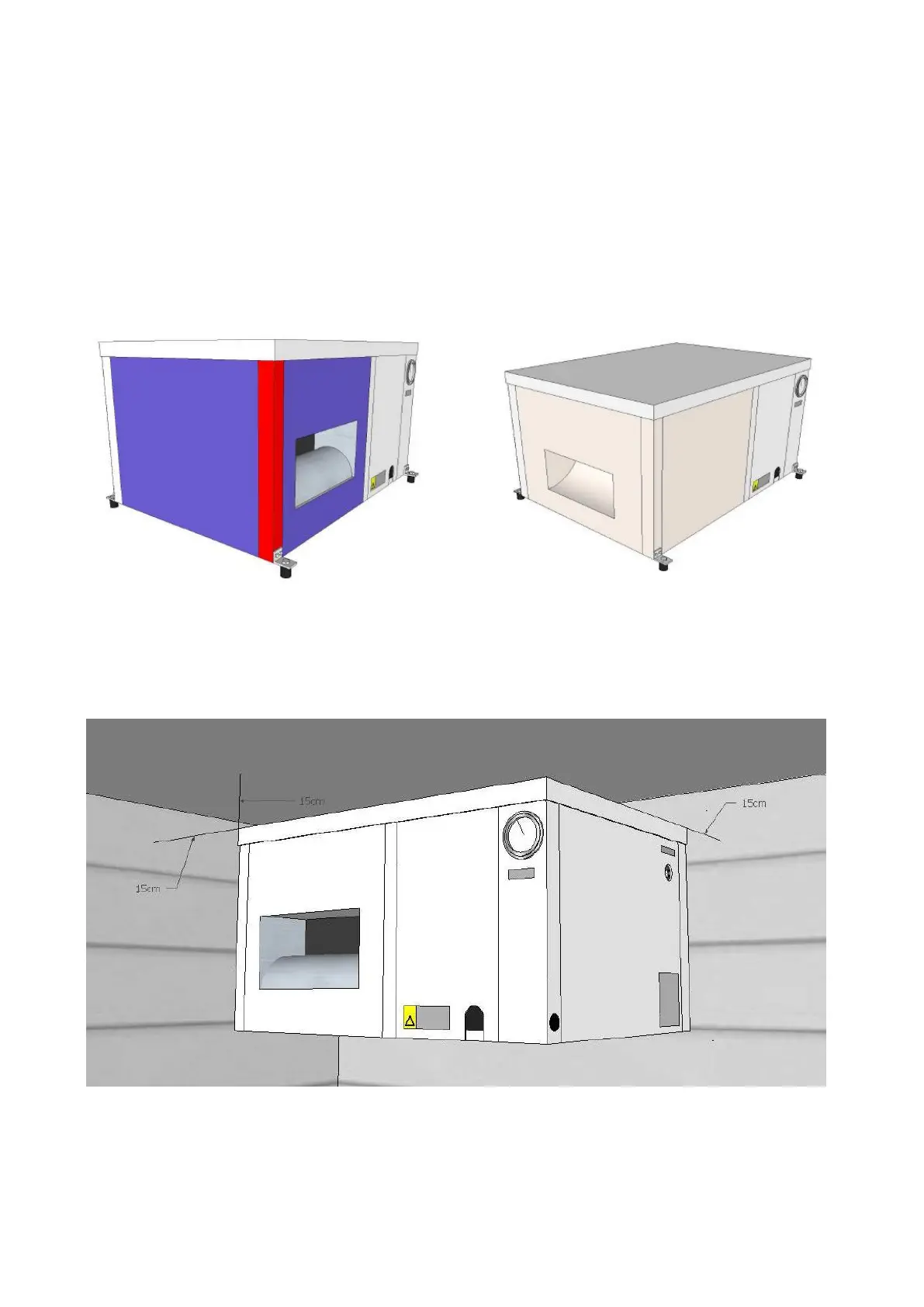

This is done simply by rotating the purple panels shown in the picture so the fan panel is on to the
short side of the unit. This is done by rotating the red corner support 90
o
then upside down so there
are no loose cable connections.
At the rear of the unit where the carbon / particle filter is the air inlet must be a minimum distance of
15 cm from the wall in order to guarantee proper intake of the air. The distance between the top of
the unit and the ceiling should also be at least 15 cm. Greater distances are preferable. The unit
must be free of the walls to avoid unnecessary noises caused by contact.
