OPTICLIMATE SPLIT PRO3 Series - Page 8

8

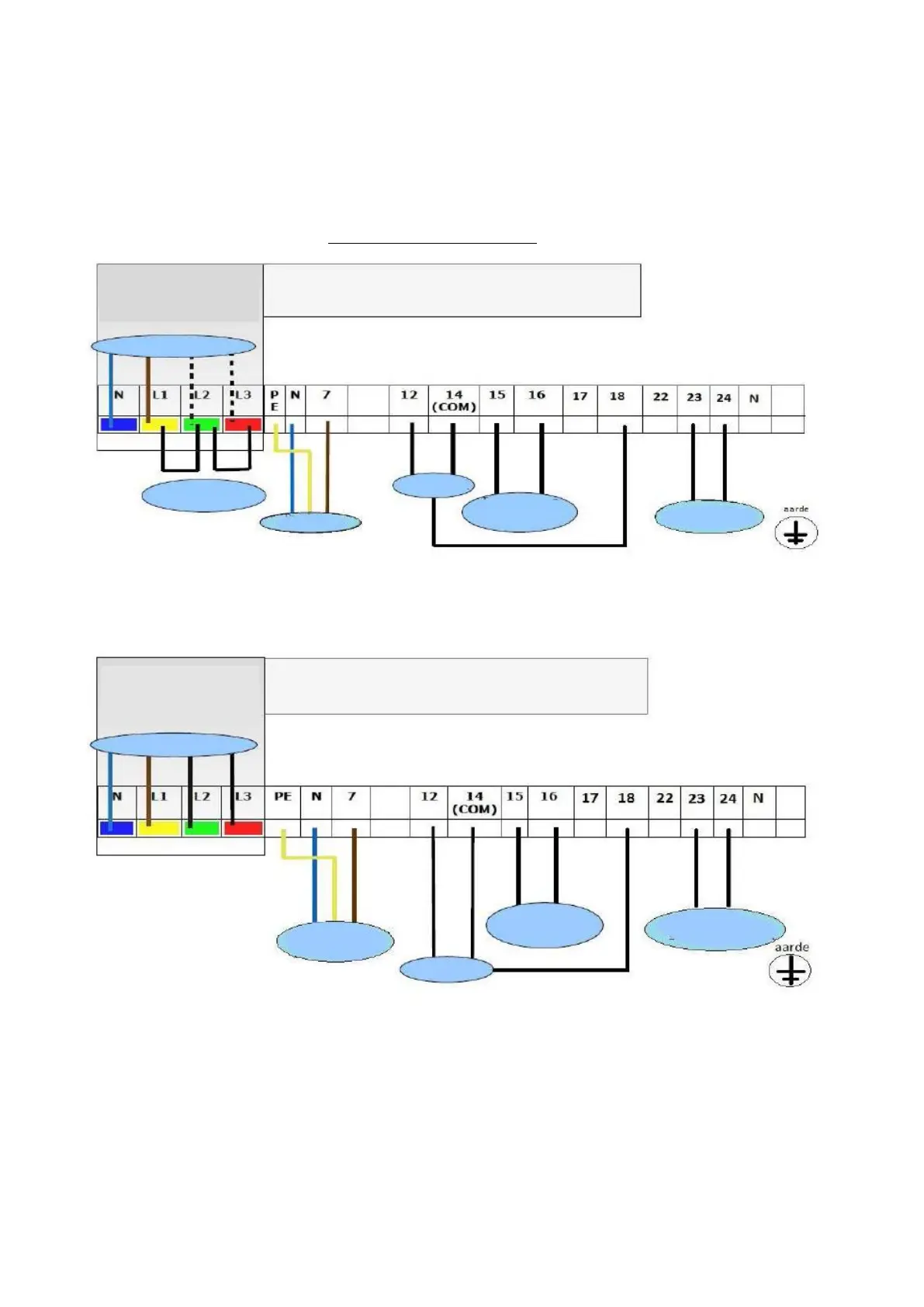

The cables for the power supply must be guided through the grommet on the side to be connected
to the left side of the terminal strip as described in the figure. The earth can be connected to
terminal PE or on the screw on the metal casing directly below the terminal block.
D3500pro, D6000pro & D1000pro 230 (1 & 3 phase). At phase 1, 2 loops between L1-L2 and
L2-L3 of the heating elements. 3-phase is always preferred.
Connections to the
terminal strip left corner
Connections to the
terminal strip right corner
2 loops 230V 1 phase
Outdoor fan unit
Humidistat
Temperature
protection
230V 3 phase
Outdoor
temperature unit
Connections to the
terminal strip left corner
Connections to the terminal strip
below right corner
430V 3 phase
Outdoor fan unit
Humidistat
Temperature
protection
Outdoor
temperature unit
Wiring diagram for the pro D15000 400v 3 phase only
