CONNECTORS
1. Load cell connection
The indicator can connect with 6 load cells of 350Ω at most
4 wire or 6 wire load cell connections are both okay
Please contact us directly if you have other special needs for your application
There are two connection methods between the load cell and indicator
Quick Disconnect as shown below:

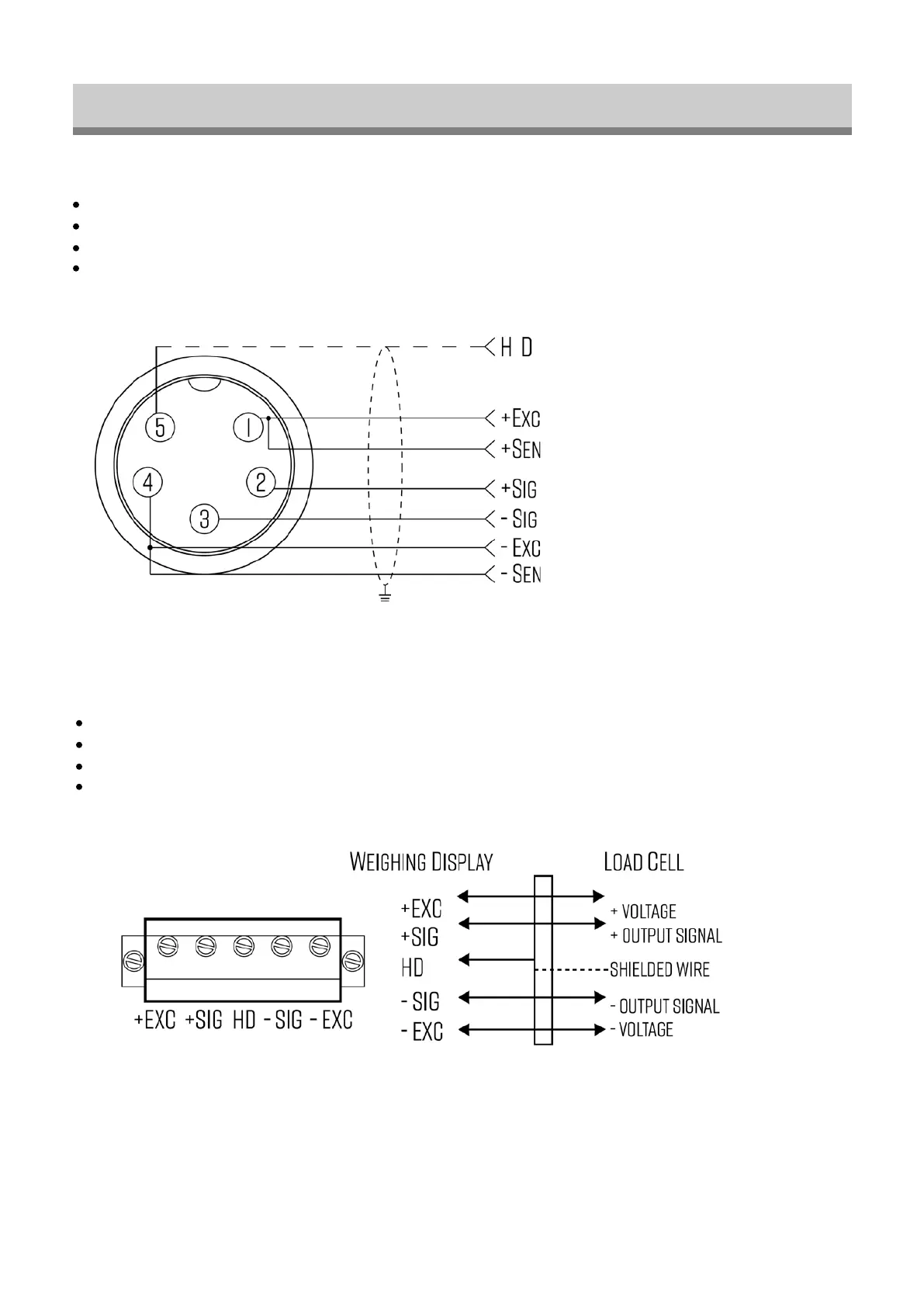

FIGURE 2: QUICK DISCONNECT CONNECTION DIAGRAM
Hardwire (Using Inner Terminal Block Connection:
Note: Make sure you follow all the anti-static rules to avoid damage to your indicator
Excitation voltage: 5V
DC
Largest output current: 120 mA
Excitation circuit: 5 VDC, 4 wire connection, 6 load cell of 350ohm maximum
Open the back cover of the weighing indicator, and insert signal cable to the terminal block
(see figure 3); Make sure the screw on terminal block is fixed tightly
FIGURE 3: INNER TERMINAL BLOCK CONNECTION DIAGRAM
