17
BATTERY INSTALLATION
The indicator works with AC power, please note the voltage is proper and check if the AC
power side is earthing.
Voltage transformer and stable circuit is build in the indiciator please dont open it with-
out professional instruction.

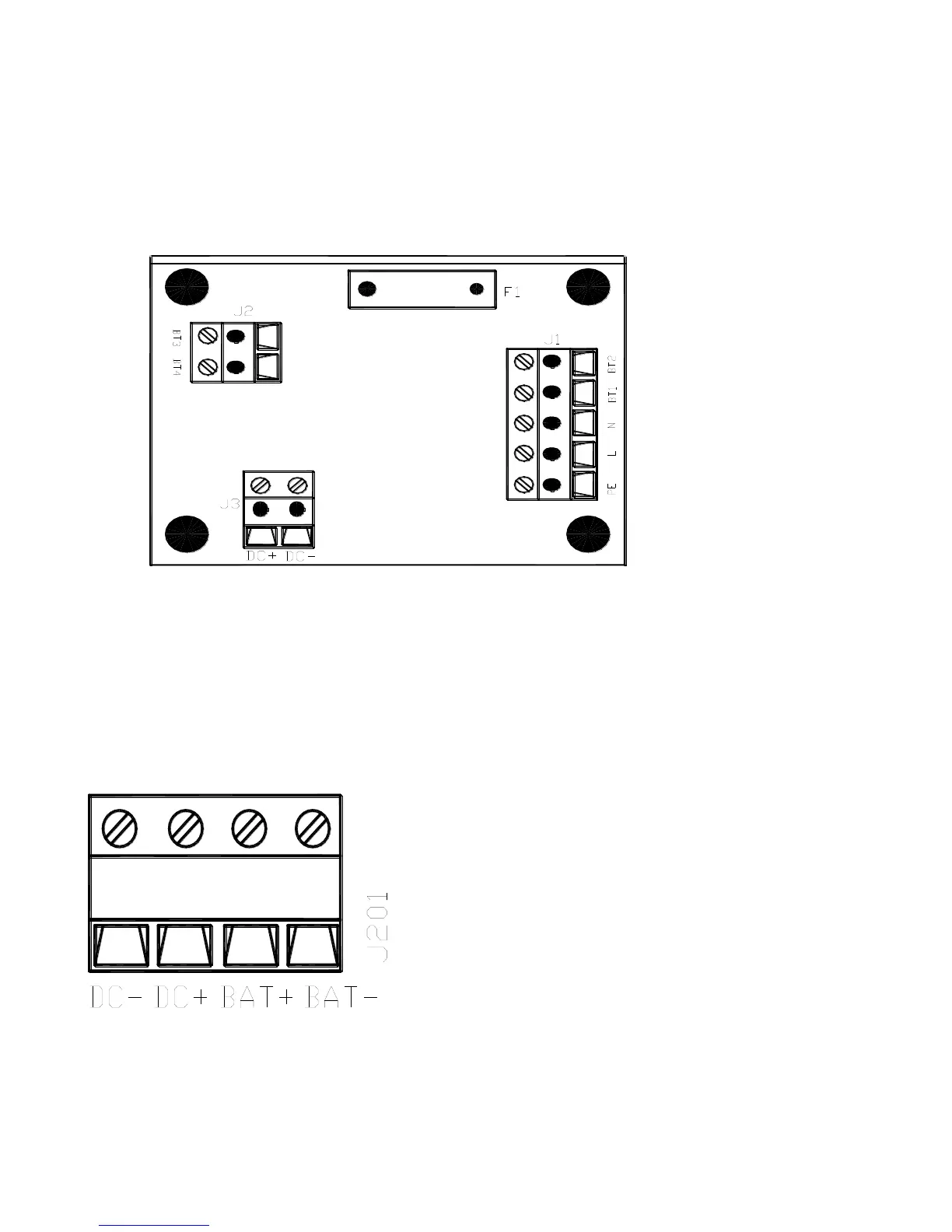

Stable Circuit connection
J1 Inditial level for AC power input and voltage transfomer
J2 Second level for voltage transformer
F1 220V 0.25A fuse
PCB indicator power connection
Postive battery connect with BAT+ , negative batter connect with BAT-
