Assembly
OPTIMUM
MASCHINEN - GERMANY
30 / 11 / 2007Page 10 Assembly Add-on kit D240/D280 ; Version 1.3.3
© 2007
GB

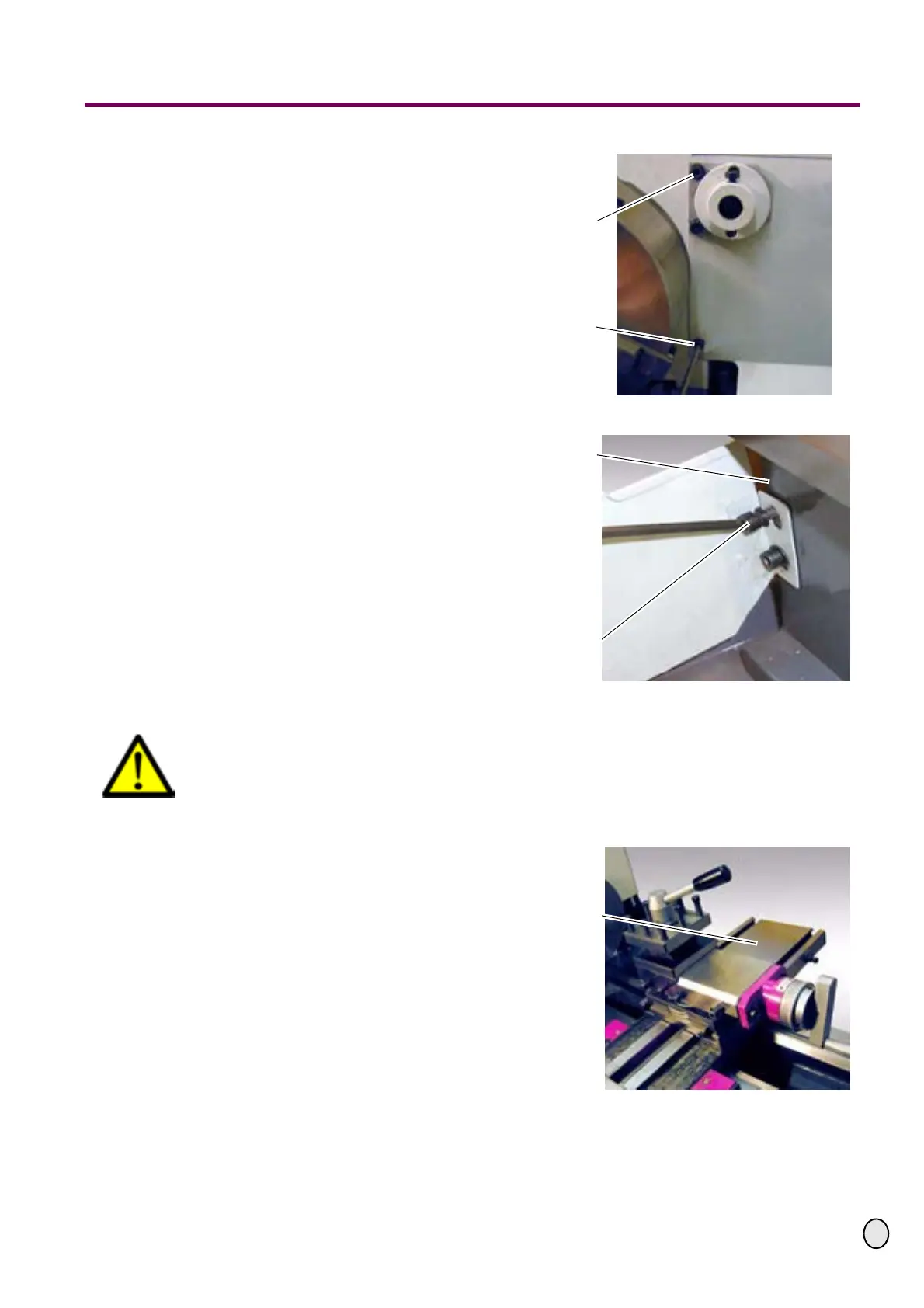

£ Unscrew the 3 fastening screws of
the splashboard on the headstock.
Illustr.: 4-4: Fixture headstock
£ Unscrew the 2 fastening screws of
the splashboard of the engine bed.
£ Remove the splashboard of the
lathe in order to easily excess all
parts of the lathe.
Illustr.: 4-5: Fixture engine bed
CAUTION!
Danger by crushing.
The slide is very heavy!
£ Crank the compound slide with the
handwheel to the back.
£ Draw the compound slide backward
out of the guiding device.
Illustr.: 4-6: Remove compound slide
Upper fastening
screws
Lower fastening
screws
Engine bed
Fastening screws
Compound slide
