4 Assembly
CNC conversion kit MK D 24 PD / MK D 28 PD
4.1 Assembly X-axis
WARNING!
Before starting the work disconnect the machine from electrical power supply, only plug
it in upon expressive order if the rebuilding measures have not been terminated.

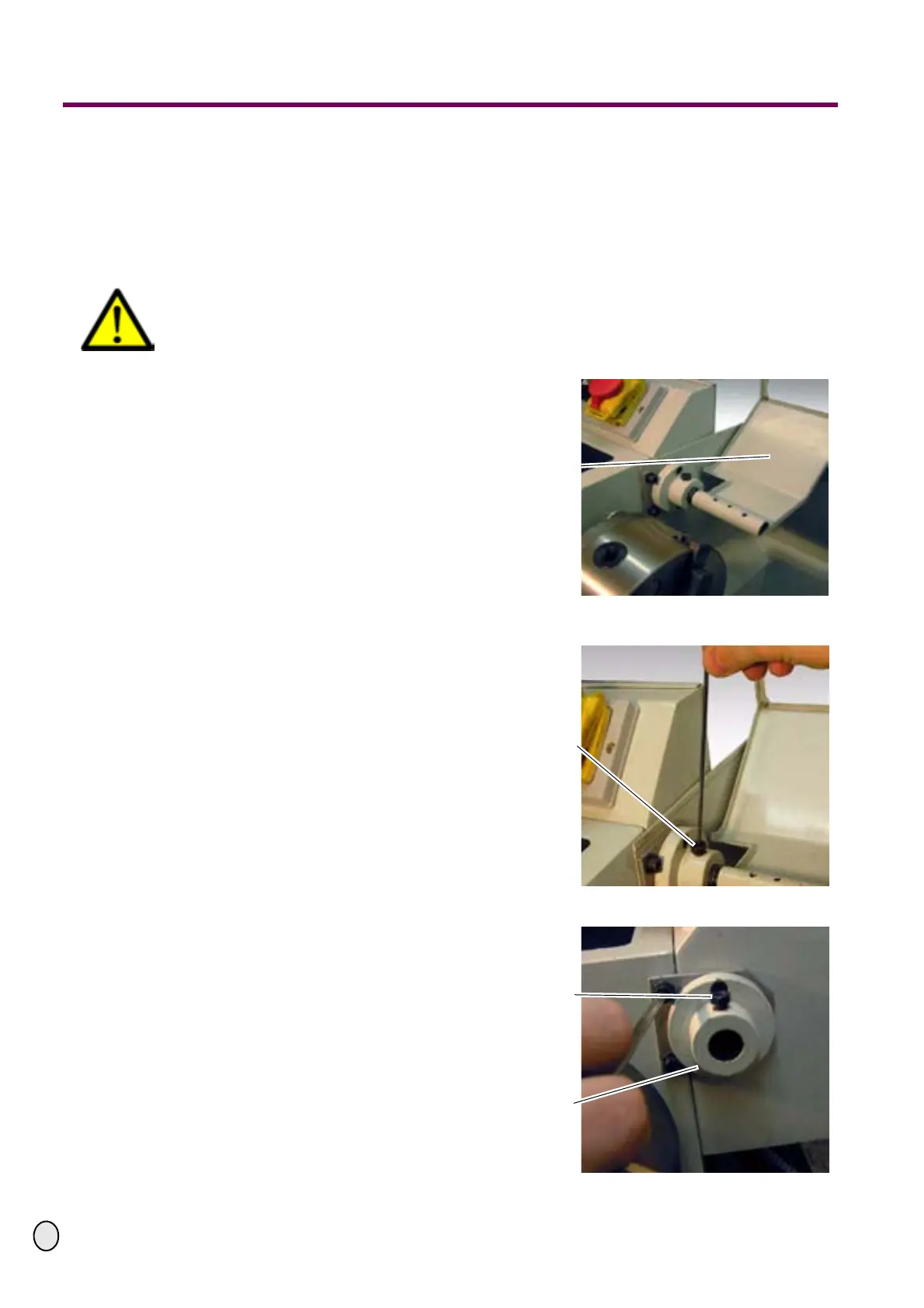

£ Open the chuck protection of the
lathe chuck.
Illustr.: 4-1: Lathe chuck protection
£ Unscrew the safety screw of the
lathe chuck protection.
Illustr.: 4-2: Unscrew lathe chuck protection
£ Draw the lathe chuck protection off
the fixture.
Illustr.: 4-3: Fixture lathe chuck protection
Lathe chuck protec-
tion
Safety screw
Safety screw
Fixture lathe chuck
protection
