Wiring of step motors on the machine
30 / 11 / 2007 Page 33Wiring of step motors on the machine Add-on kit D240/D280 ; Version 1.3.3
© 2007
GB
5 Wiring of step motors on the machine
5.1 Assembly X- / Z-axis
5.2 Wiring X- / Y- / Z-axis

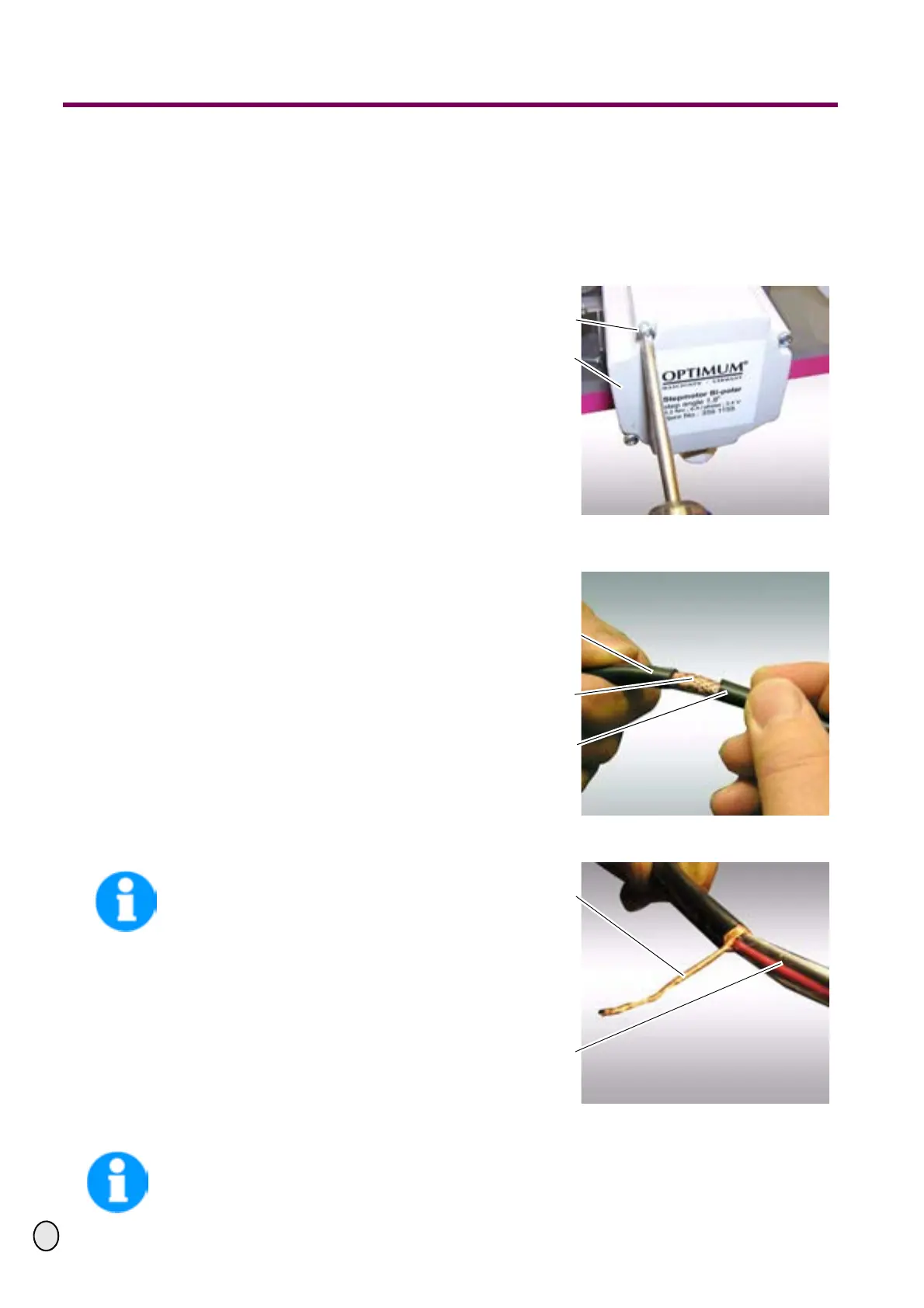

£ Open the lid of the step engine with
a cross slot screwdriver.
Illustration: 5-1: Open the lid of the step engine
£ Remove the outer isolation of the
cable and make sure that the lower
isolation of the single conductor will
not be endangered.
£ The bare part should have a length
of about 6 cm.
Illustration: 5-2: Remove outer isolation
£ Twist the fabric of the shielding.
Illustration: 5-3: Twist screening
INFORMATION!
The shielding will be connected to the terminal block of the engine on one side.
Screw of the step
engine
Lid of the step engine
Outer isolation
Screening
Cut outer isolation
Screening
Cable
