Wiring of step motors on the machine
OPTIMUM
MASCHINEN - GERMANY
30 / 11 / 2007Page 34 Wiring of step motors on the machine Add-on kit D240/D280 ; Version 1.3.3
© 2007
GB
£ The cables will be peeled off at a length of about 5 mm with insulation stripping tongs.
£ Plug and press wire terminations on the ends of the cable.
£ Plug the strain relief over the cable.
£ Insert the cable through the opening
of the cover plate of the step engine.
£ Connect the cable to the engine and
tighten the strain relief.
£ The twisted screening goes with the
clamping "GND" .

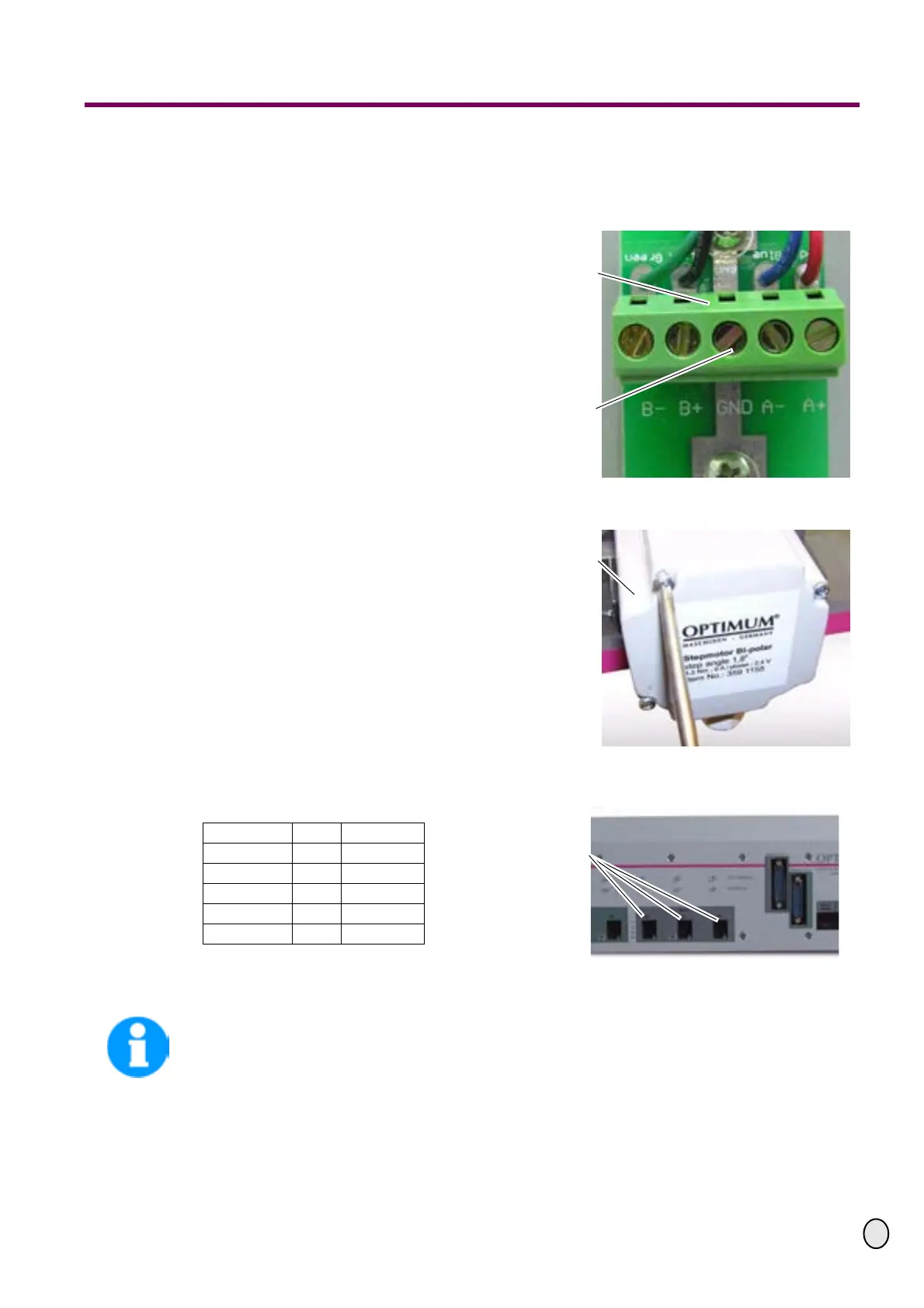

Illustration: 5-4: Terminal block of the engine
£ Fasten the lid of the step engine with
the cross slot screwdriver.
£ Then cut the cable to the length
which is required to connect it to the
CNC controller.
Illustration: 5-5: Screw the lid
£ Connect the cable to the CNC controller accordingly.
Illustration: 5-6: Terminal block CNC Controller
VI
INFORMATION!
Neither a shielding not an earth cable will be connected to the CNC Controller.
Terminal block engine
Screening
Lid step engine
Terminal block
CNC Controller
Motor Controller
A- auf A-
A+ auf A+
B- auf B-
B+ auf B+
GND
