3.8 Inclined plane
Creates an inclined plane in a coordinate system such that processes can be carried out on
said inclined plane.
 Press button to access parameter settings. Press the button again to exit from
parameter settings.
 Using the arrow keys, select the menu point and input the desired value.
 Press the button to execute the function.
 Press the button to exit from the function.

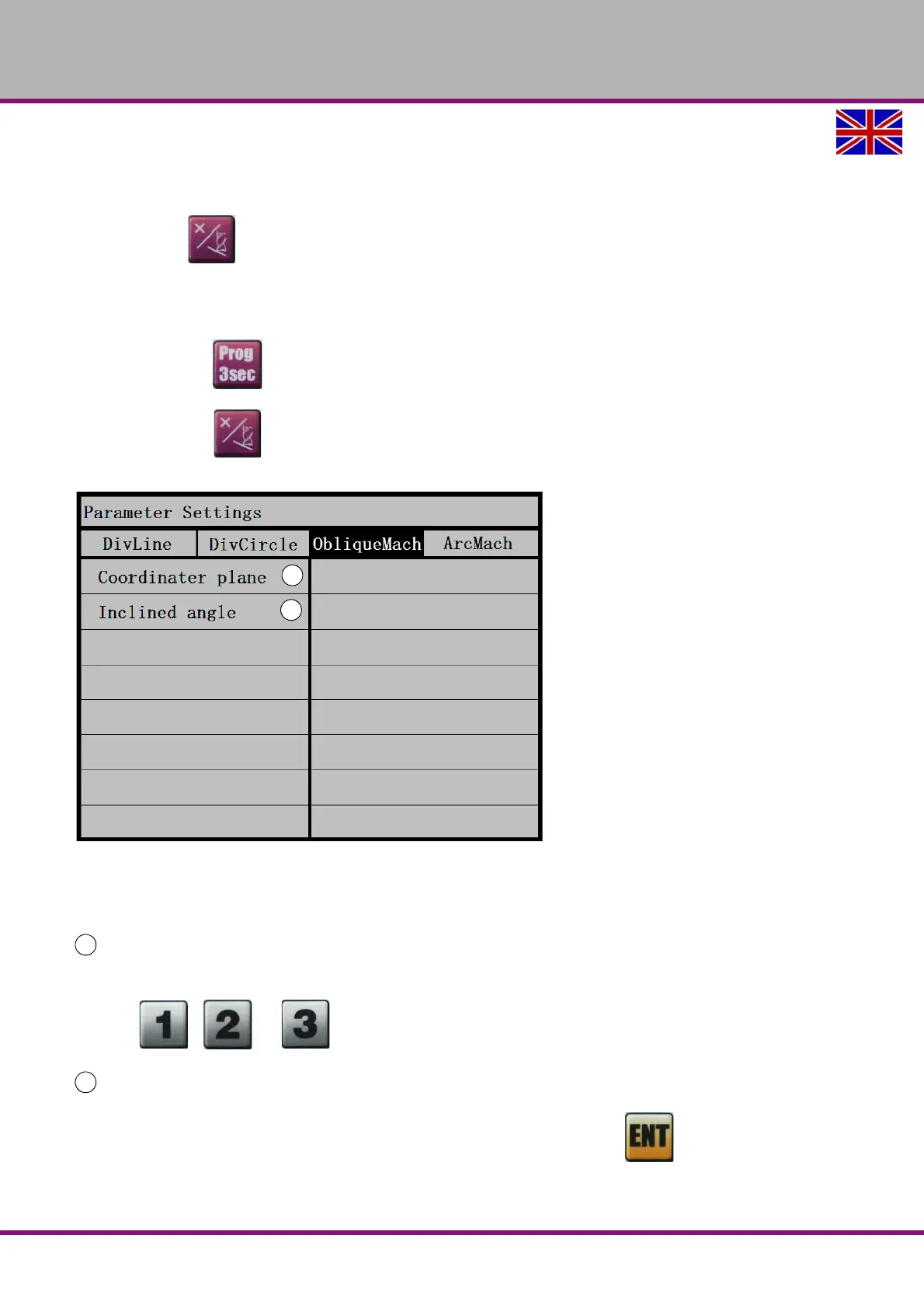

3.8.1 Parameter meanings
Meanings of parameters and settings.
Coordinate plane:
Selecting the coordinate plane.
Press the , or key to select X-Y, Y-Z or X-Z as the coordinate plane.
Angle of the coordinate plane:
Input the angle of the inclined plane using the numeric keys and confirm with the key.
1
2
1
2
