3.9 Arc
Creates an arc in a coordinate system such that processes can be carried out on said arc.
 Press button to access parameter settings. Press the button again to exit from
parameter settings.
 Using the arrow keys, select the menu point and the second page, and input the desired
value.
 Press the button to execute the function.
 Press the button to exit from the function.

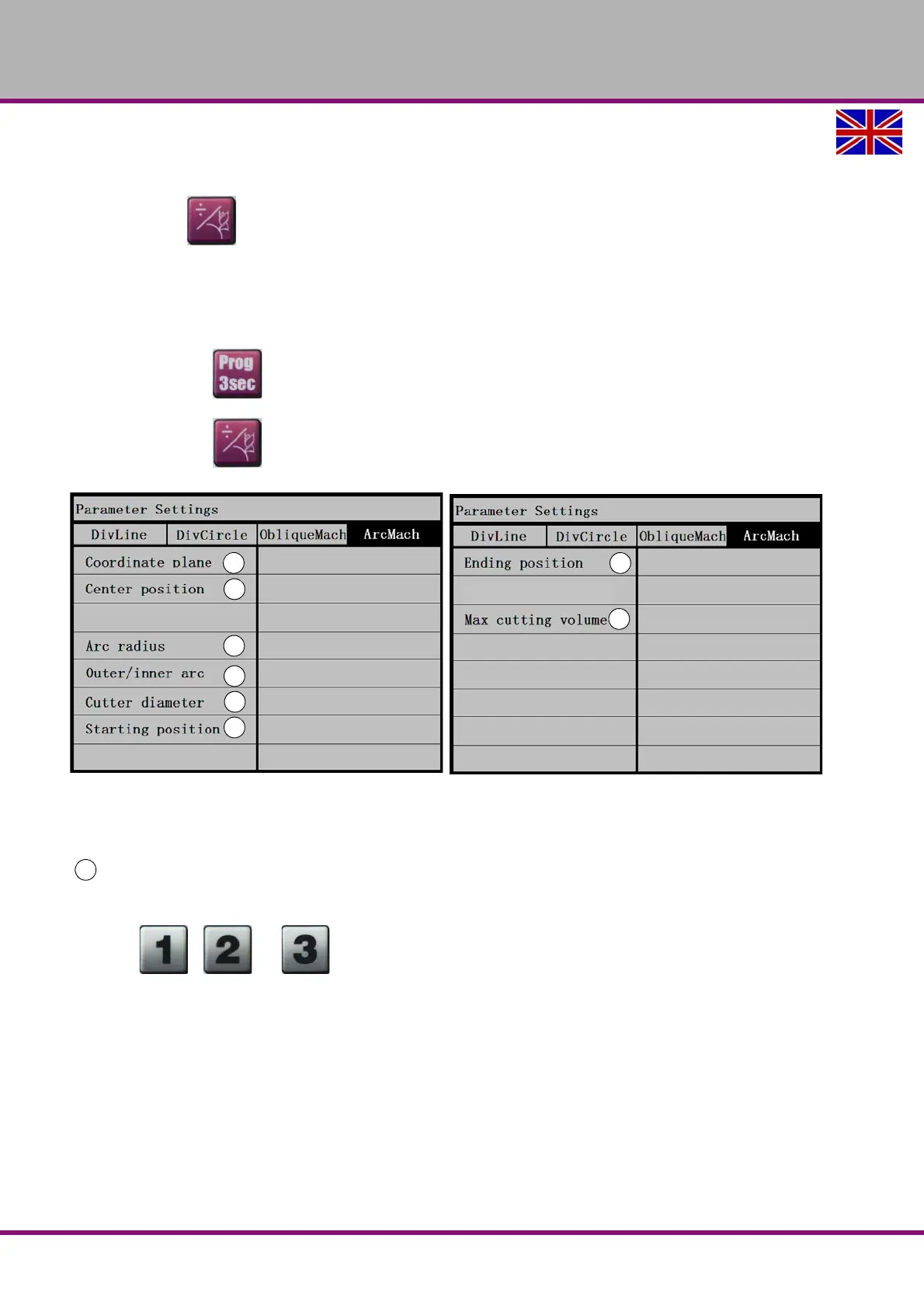

3.9.1 Parameter meanings
Meanings of parameters and settings.
Coordinate level of the arc:
Selecting the coordinate plane.
Press the , or key to select X-Y, Y-Z or X-Z as the coordinate plane.
