3.10 Tool data function
Creates up to 99 tool data sets in relation in the coordinate system.
Usage of the tool data function makes it possible to establish a specific relationship between
the tool data in the coordinate system and the displayed values.
INFORMATION
The saving function for tool data only when the reference mark function is acti-
vated.
"Reference marker function“ on page 21.
Stored values remain saved even after loss of electric power.
Example:
Tool data no. 2 should lie at X = 1.000 and Y = 2.000 to the shown values.

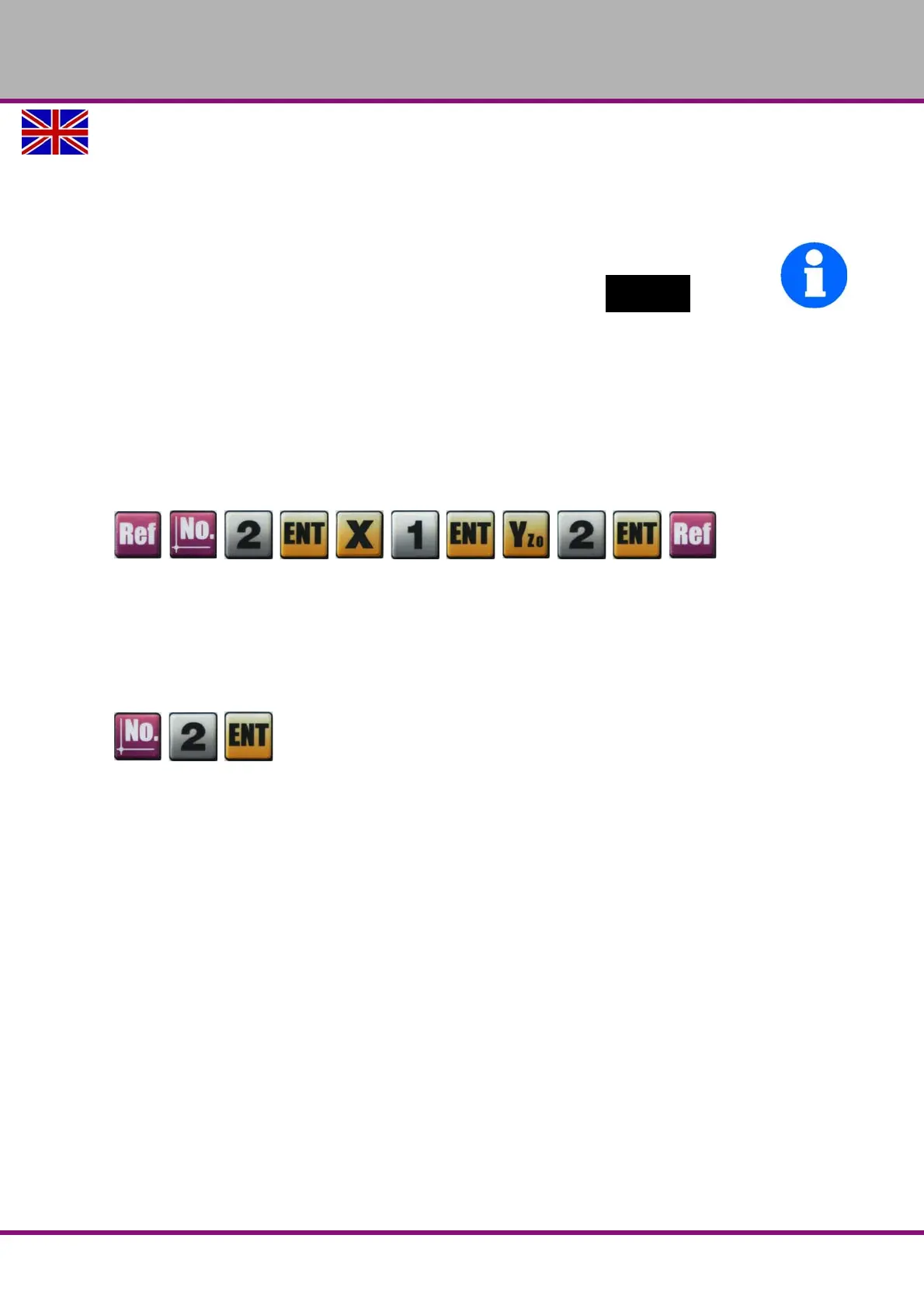

Press the following keys in the order shown in order to input the values X = 1.000 and Y =
2.000 under tool data no. 2.
3.10.1 Recall of tool data
Example:
The tool data set no. 2 should be used at the currently displayed position.
Press the following keys in the order shown in order to use tool data set no. 2.
