Installation
Version 1.0 dated 2015-03-31Page 6 Original operating instructions
DPA22GB
2 Installation
2.1 Scope of delivery
Digital position display
Fixture
External power supply
Speed sensor, without commercial permanent magnets as a signal transducer
2.2 Mechanical installation
CAUTION!
Failure of electronic display
When mounting pay attention to the IP type of protection.
Avoid impact on the device.
Do not modify the device in any way.

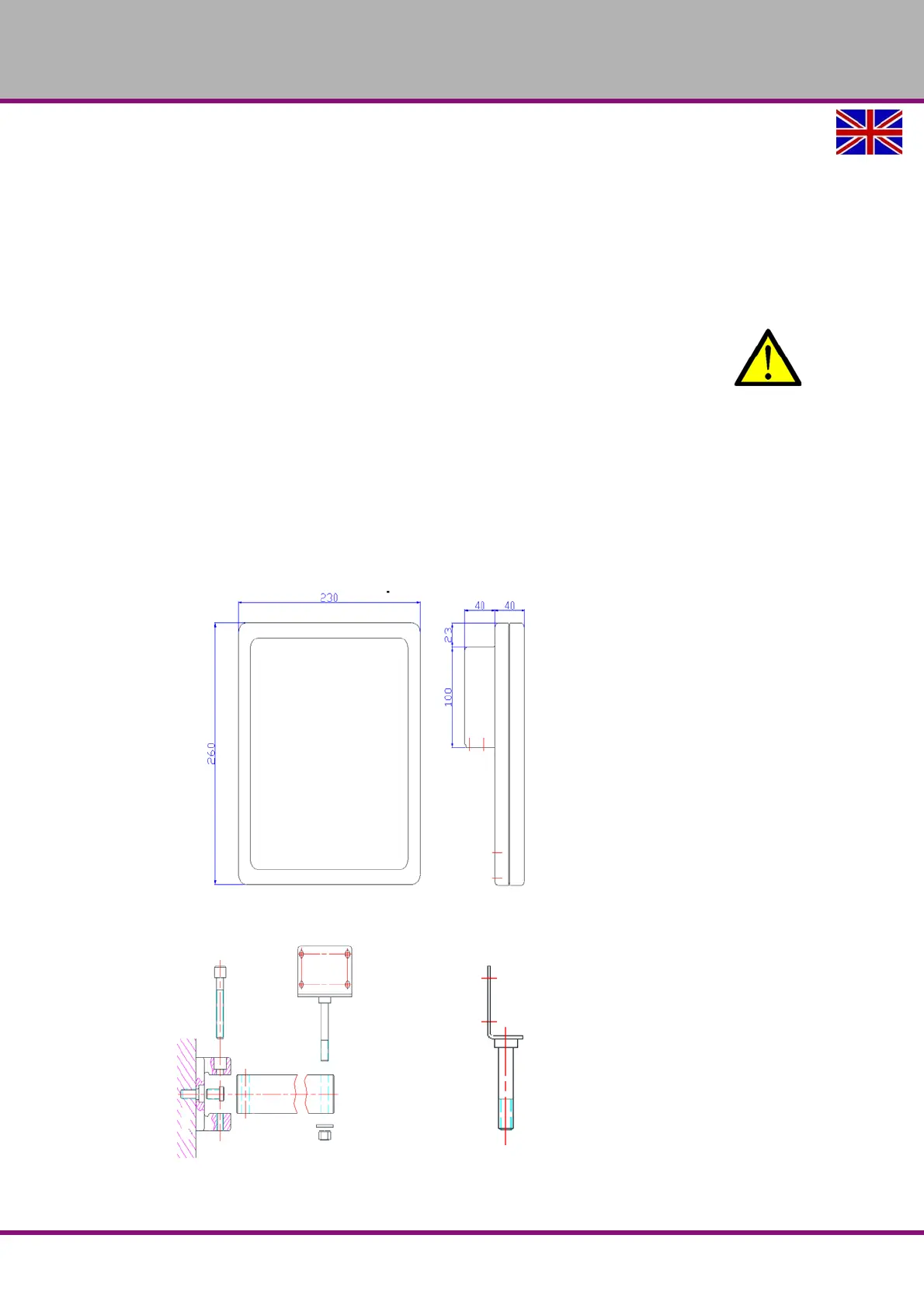

Assembly
Screw the device in place on the fixture using the threaded holes (spacing 60 x 25mm - 4x M4,
7 deep) on the back.
Device dimension: height 260mm, width 230mm, depth 80mm
