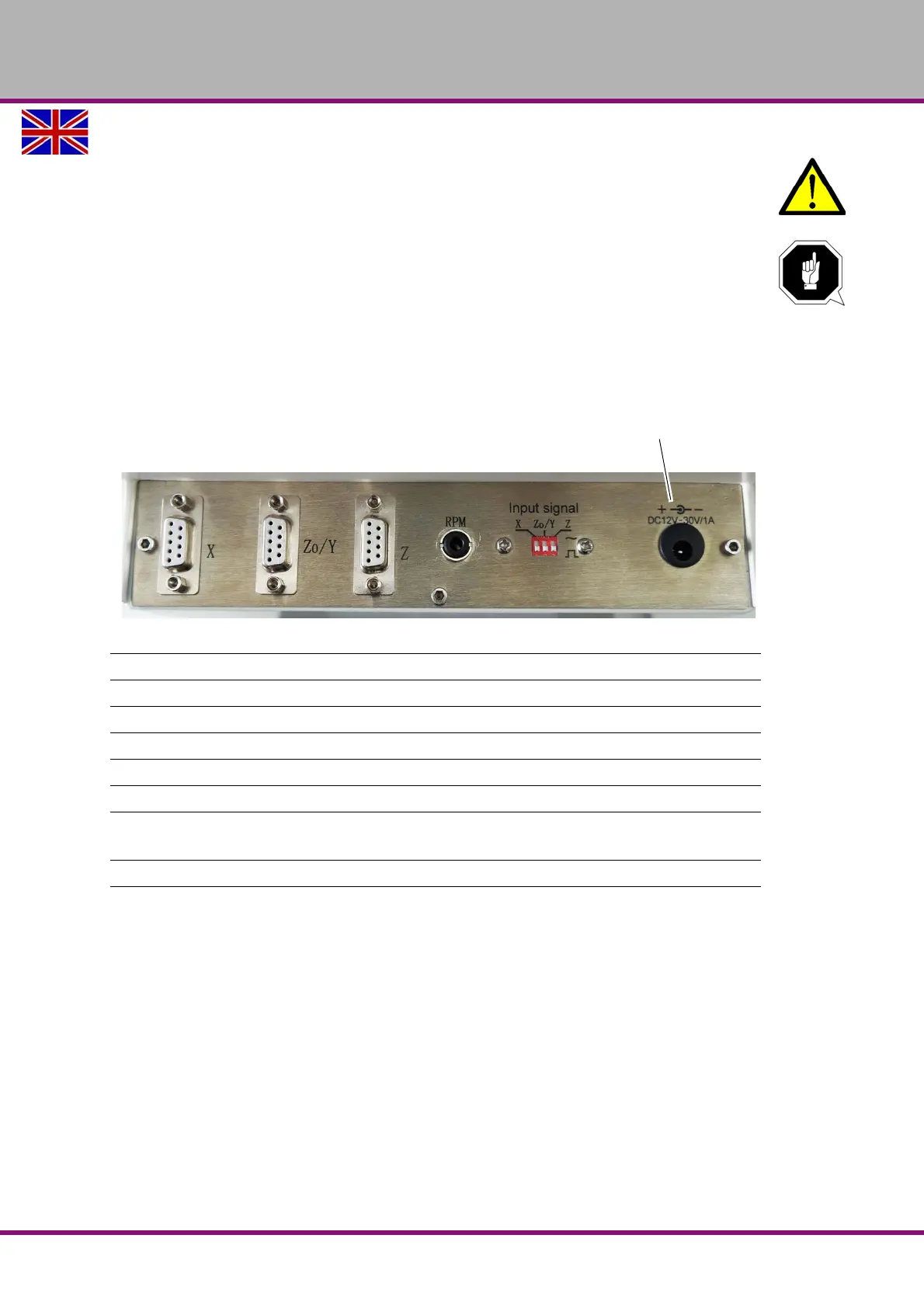

2.3 Electrical installation
WARNING!
Destruction of parts of equipment and loss of regulation control
Check all line connections and plug connections before switching on supply voltage.
ATTENTION!
Basically, all connections are protected against external interference. Choose a place of opera-
tion that excludes inductive or capacitive interference influences on the electronic display or its
connecting lines. When mounting the system keep a maximum possible distance from lines
loaded with interference. If necessary, provide additional installations including screening
shields or metallized housings. Contactor coils must be wired with spark suppression.
Working temperature 0 °C ... +40 °C
Storage temperature -30 °C ... +70 °C
Humidity 90 % bei 20°C + - 5°C maximum
Protection type IP51
Weight 2.5 kgs
Electrical data
Power supply
Power supply
12 V to 30 V DC
230V
Current consumption ~ 20W
