Optimum OPTIdrill DP 33 - Page 17

Delivery, interdepartmental transport, assembly and commissioning
Version 1.0.1 - 2020-08-18 17Translation of original instruction
DP33 EN
DP33_GB.fm

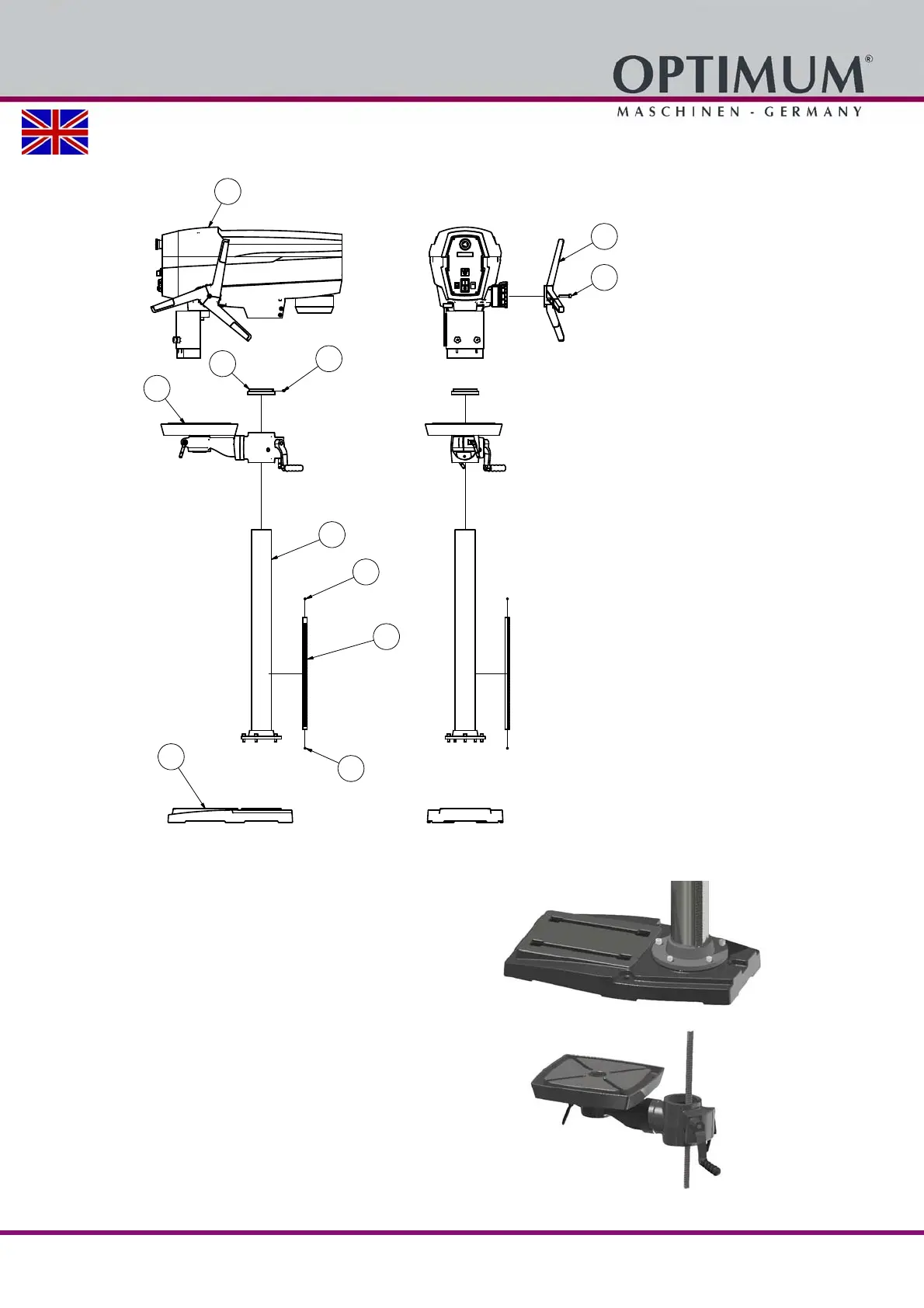

Place the machine foot on a flat floor and screw the
column to the machine foot.
Insert the rack into the drilling table support. Some
grease helps to fix the rack in the guide. Pay attention
to the helical gearing on the rack. The longer
untoothed end of the rack must point upward.
