Optimum OPTIdrill DP 33 User Manual

Delivery, interdepartmental transport, assembly and commissioning
Version 1.0.1 - 2020-08-1816 Translation of original instruction
DP33
EN
DP33_GB.fm
3.2 Assembly
CAUTION!
When mounting components with high weight, the reasonable load of persons can be
exceeded.
CAUTION!
The drilling machine comes disassembled due to packaging reasons.
2 persons are required to assemble the drill.
Before commissioning, the drilling machine has to be assembled.

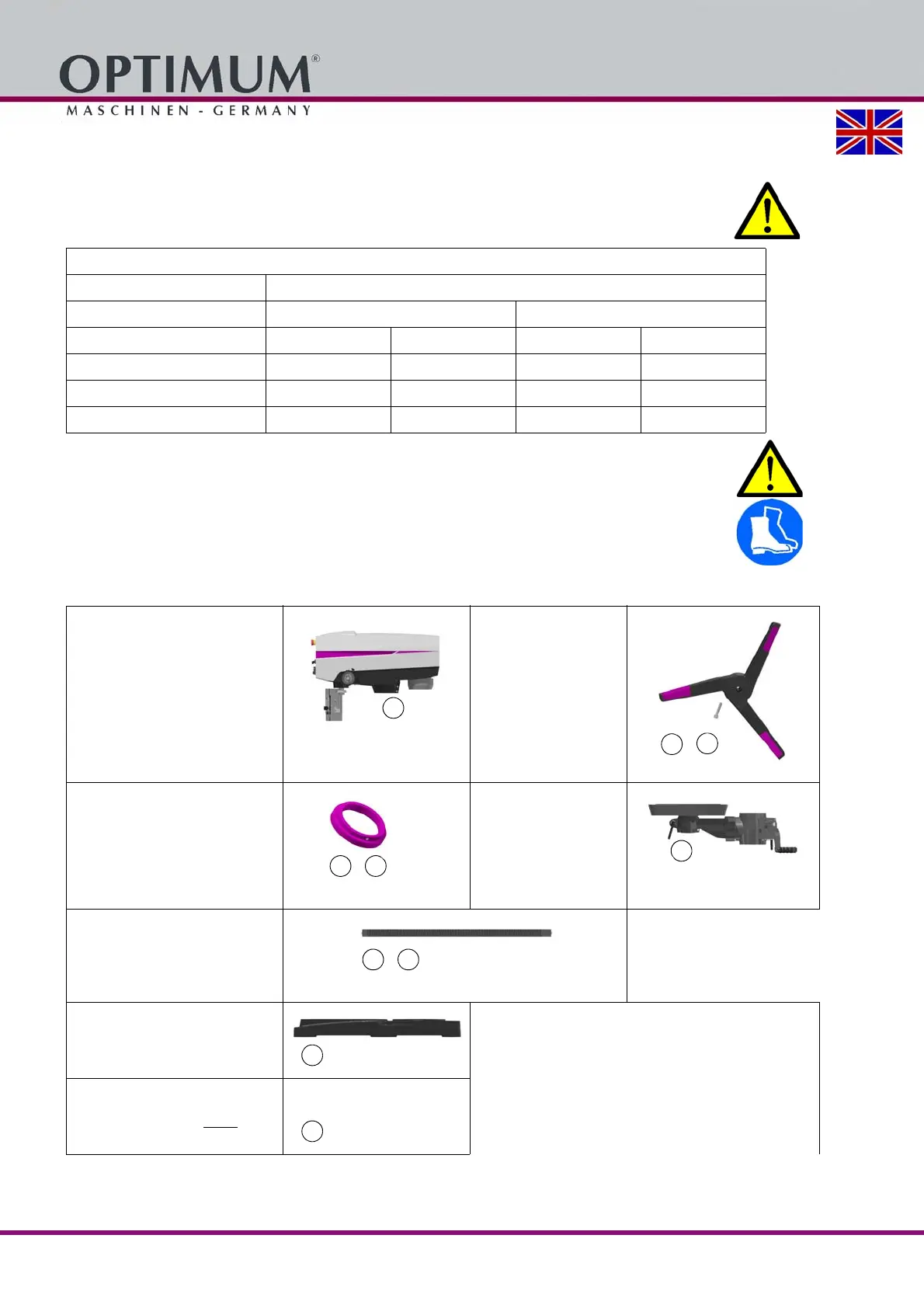

3.3 Individual components
Recommended threshold values when lifting and carrying loads
Reasonable load in kg and frequency of lifting and carrying
Occasionally More frequently
Age in years Women Men Women Men
15 - 18 15 35 10 20
19 - 45 15 55 10 30
from 45 15 45 10 25
Drill head
Spindle sleeve lever
with fixing screw
Rack mounting ring with stud
bolt
Drilling table
Rack with 2 steel balls
Machine base
Drilling column
Weight about: 18 kg
8
9
10
+
7
+
6
5
4
+
3
1
2
