2.5 Milling table
Table length C MH20V / MH20VL(D) [mm] 474 / 675
Table width [mm] 180
Maximum load capacity MH20V / MH20VL(D) 50 kg / 40 kg
T-slot size/distance/number 12 / 63 / 3
X axis travel MH20V / MH20VL(D) [mm] 280 / 480
Y axis travel [mm] 175

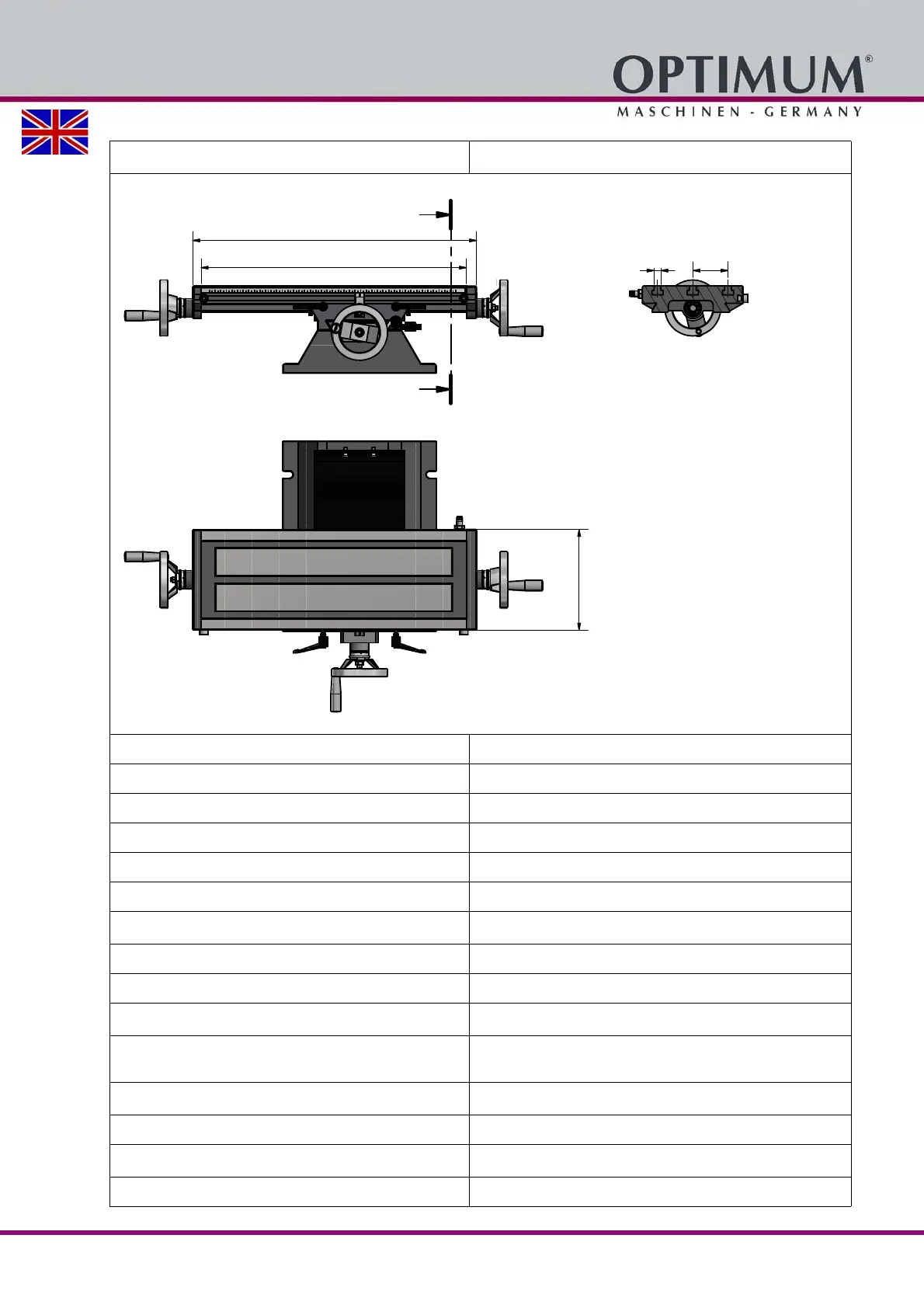

2.6 Dimensions
 "Fastening to the Machine Base“ on page 26
Total weight MH20V / MH20VL(D) [kg] 94 / 99
2.7 Work area
Keep a work area of at least one metre around the
machine free for operation and maintenance.
2.8 Speeds
Electronic speed range / Gear stages [ rpm ] 100 - 3000 / 2 ( ~ 50 Hz 230V +- 1% )
2.9 Environmental conditions
Temperature 5 - 35 °C
