Version 2.5.1 - 2020-07-2834 Translation of original instructions
MH20V | MH20VL | MH20VLD
GB
MH20V_GB_4.fm

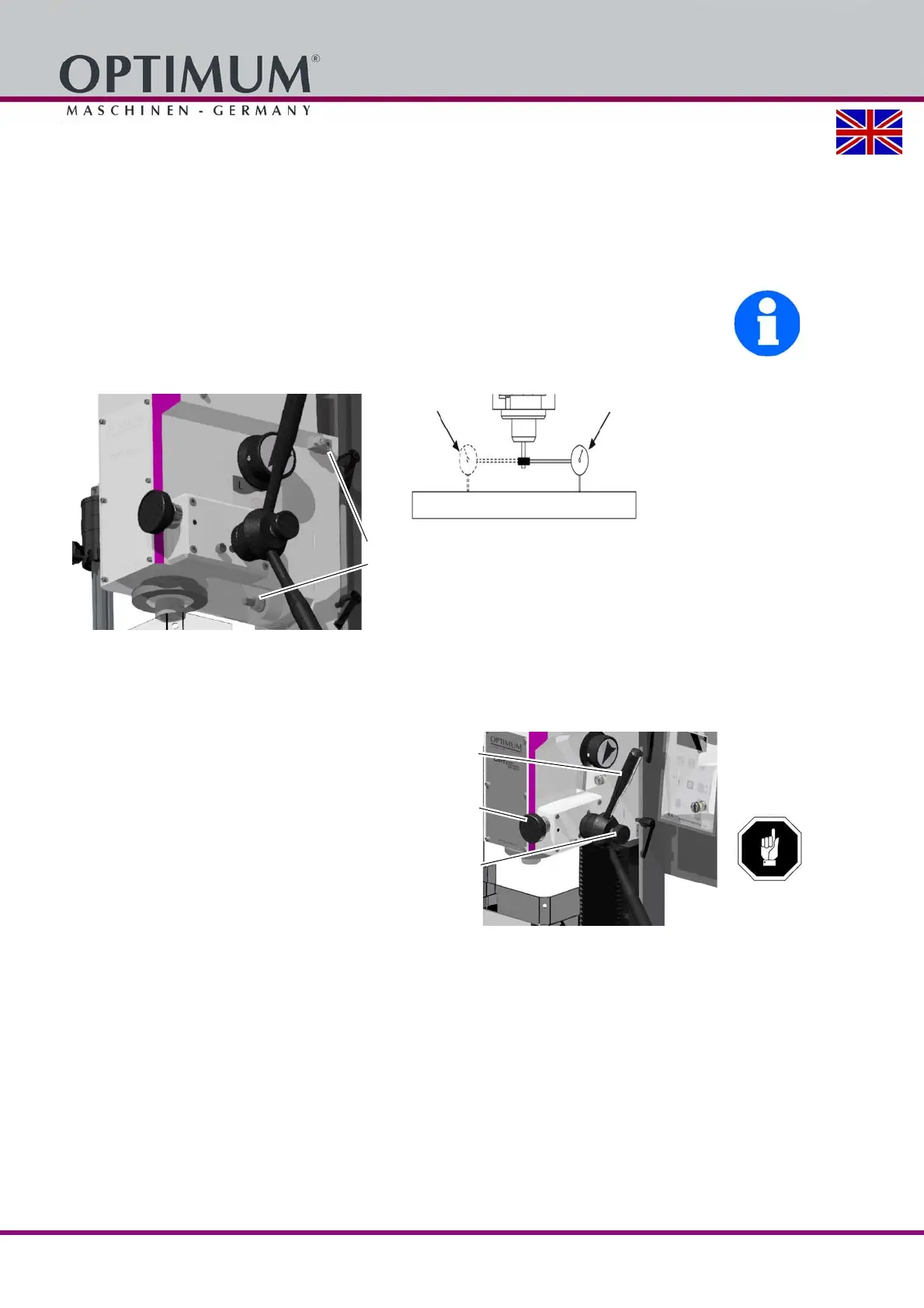

4.12 Swivelling the milling head
The milling head can be swivelled to the right and to the left.
Loosen the fastening screw on the milling head.
Turn the drill-mill head to the desired position.
Retighten the fastening screw.
INFORMATION
The milling head should be aligned after resetting to the initial position with a dial indicator so
that holes can be produced with the spindle sleeve at a right angle.
Set the zero degree angle step using your set-up.
Img.4-3: Swivelling the milling head
4.13 Manual spindle sleeve feed with the fine feed
Turn the handle screw in order
to activate fine feed.
Turn the spindle sleeve fine
feed in order to move the spin-
dle sleeve.
ATTENTION!
Damage to the mechanics.
Always deactivate the fine feed
when working with the quill
lever.
Img.4-4: Fine feed
Zero degree angle step
Clamping screw
Quill lever
Fine feed for spindle sleeve
Handle screw
