4 Operation
4.1 Safety
Use the drilling-milling machine only under the following conditions:
 The drilling-milling machine is in proper working order.
 The drilling-milling machine is used as prescribed.
 The operating manual is followed.
 All safety devices are installed and activated.
All malfunctions should be eliminated immediately. Stop the drilling-milling machine immedi-
ately in the event of any abnormality in operation and make sure it cannot be started up acci-
dentally or without authorisation.
 “For your own safety during operation“ on page 14
4.2 Control and indicating elements

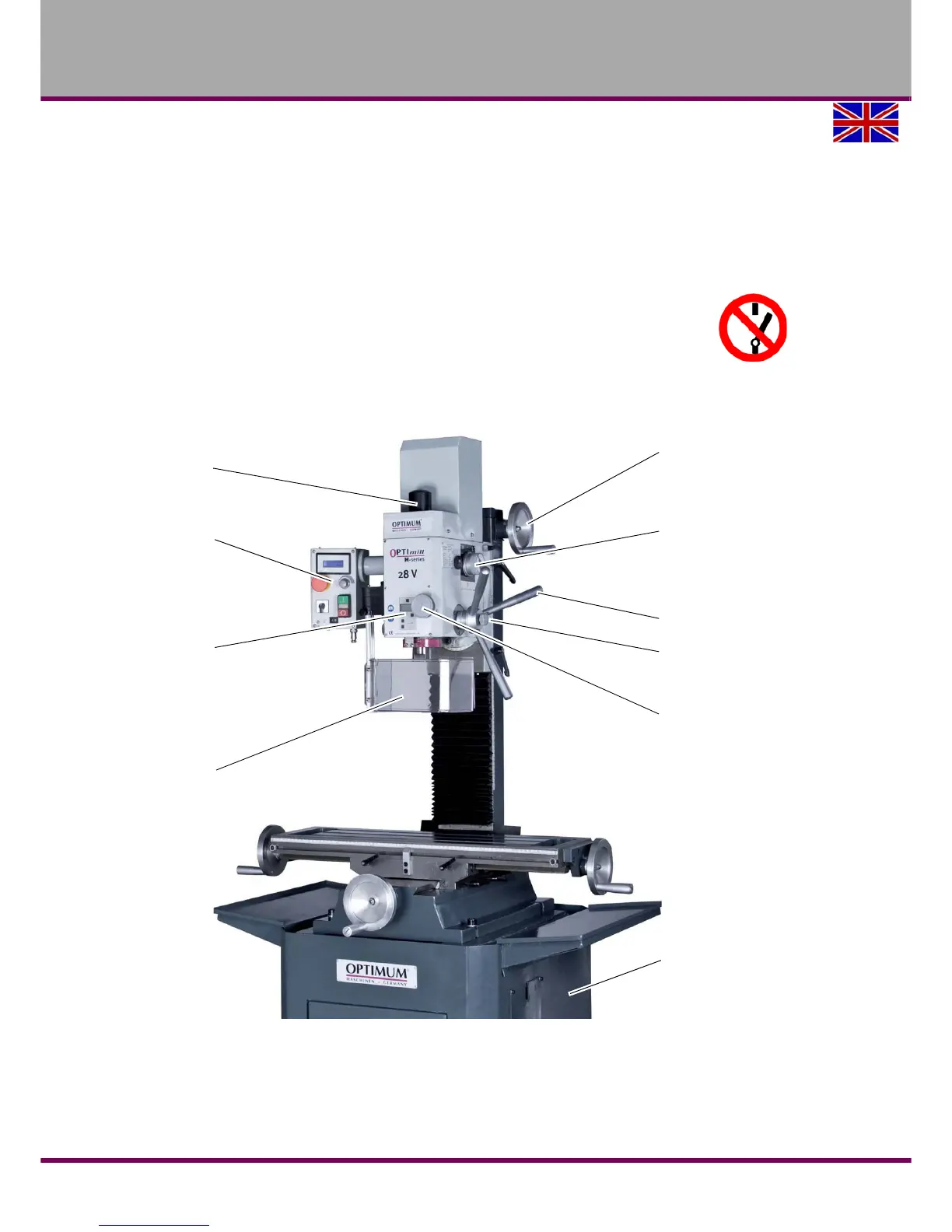

Fig.4-1: MH28V
Crank for height adjust-
ment of the drill-mill head
Selector switch for
reduction stage
Star grip for
spindle sleeve feed
Activation of the fine cross-
feed
Fine crossfeed of spindle
sleeve
Machine stand
(Option)
Cover of draw-in rod
Control panel
Digital display
fine crossfeed of
spindle sleeve
Spindle protection
