4.9 Manual spindle sleeve feed with the fine feed
 Turn the handle screw.
The spindle sleeve lever will move
towards the drill-mill head and will
activate the clutch of the fine feed.
 Turn the spindle sleeve fine feed
in order to move the spindle
sleeve.

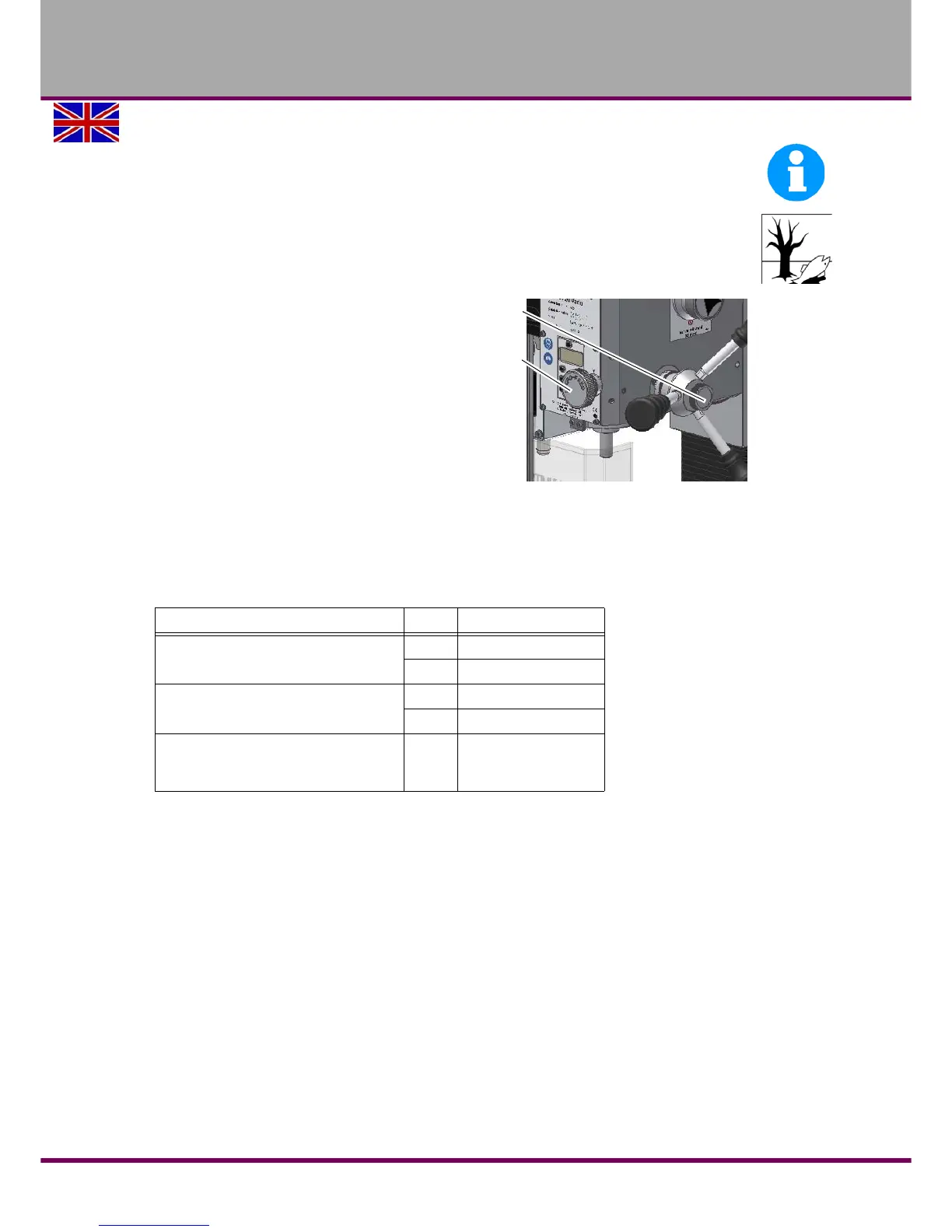

Fig.4-7: Fine feed
4.10 Digital display for spindle sleeve travel
4.10.1 Technical data
Handle screw
Fine feed
spindle sleeve
Measuring range
mm 0 - 999.9
inch 0 - 39.371“
Reading accuracy
mm 0.01
inch 0.0004“
Power supply round cell CR2032
3 V
� 20 x 3,2mm
