OPTIMUM
MASCHINEN - GERMANY
2012
Maintenance
Version 1.0.1 dated 30 / 08 / 2012
Page 36
Original operating instructions
MH28V
GB
As required
Taper gibs
Readjust
X- and Y- axis

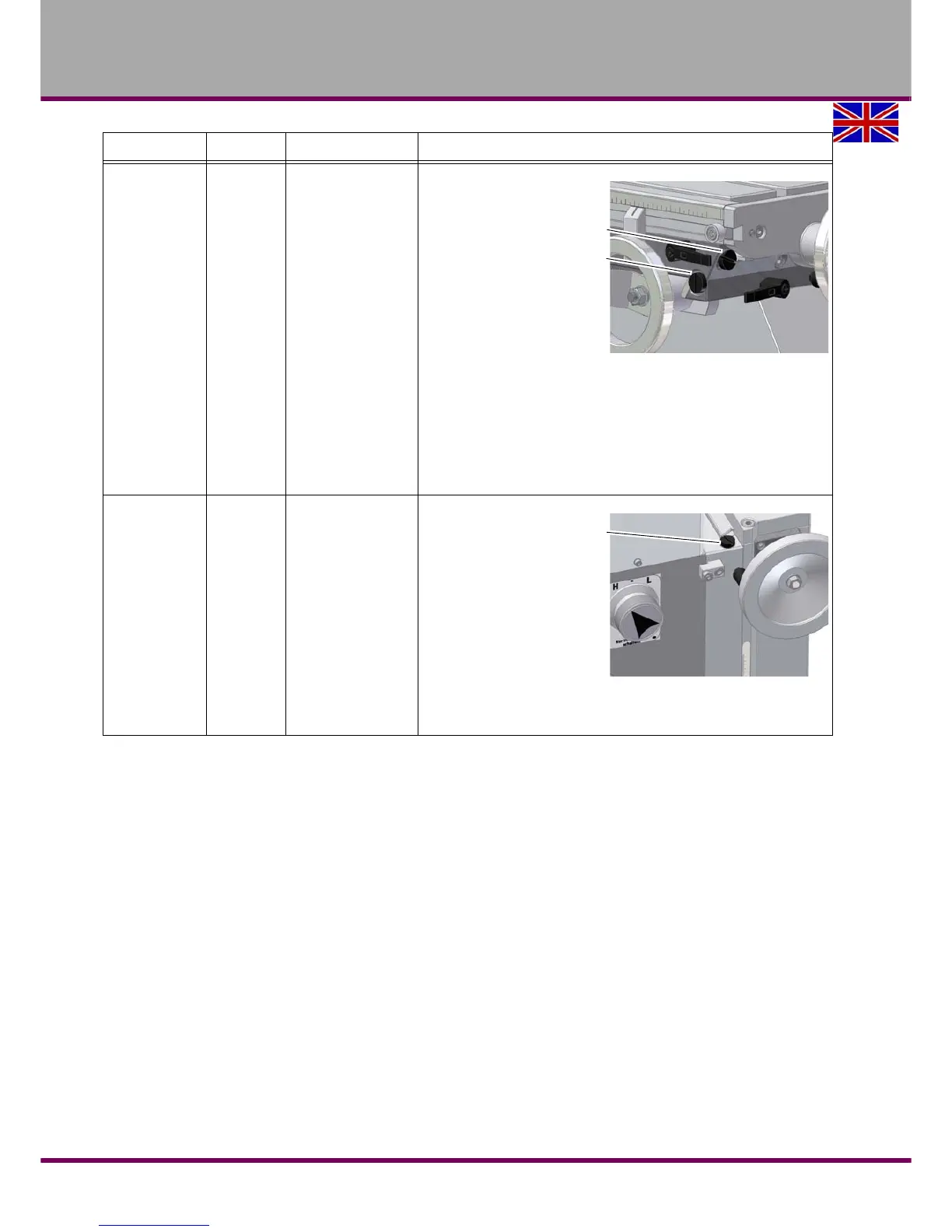

Fig.5-2: Cross table
Turn the adjusting screw of the respective taper gib in the
clockwise direction. The taper gib is continued to push in
and reduced by it the gap in the guideway.
Control your setting. The respective guideway must be
still easily mobile from the adjustment, result in however
a stable guidance.
As required
Taper gib
Readjust
Z-axis
Fig.5-3: Mill head
Proceed as described under "Readjust X- and Y-axis".
Interval Where? What? How?
