Version 1.0.1 - 2020-9-30 14 Translation of original instruction
SQ-V13
EN
SQ-V13_GB.fm
5.1.1 Preparation
WARNING!
Only carry out work on the metal band saw if it has been disconnected from the mains
power supply.
5.2 Inspection and maintenance
Optimum Maschinen Germany GmbH accepts no liability nor does it guarantee against damage
and operating malfunctions resulting from failure to observe these operating instructions.
For repairs, only use
faultless and suitable tools only,
original parts or parts from series expressly authorised by Optimum Maschinen Germany
GmbH.
5.3 Changing the saw band
Disconnect the metal belt saw from the electrical supply.
CAUTION!
Danger of cuts, be careful when performing the operations described below. Use the prescribed
protective equipment.
Unplug the power cord.
Remove the shell of the guard on the saw band.
Remove the rear cover on the saw bow.
Release the saw band tension (6).
Lift the saw band from the band rolls.

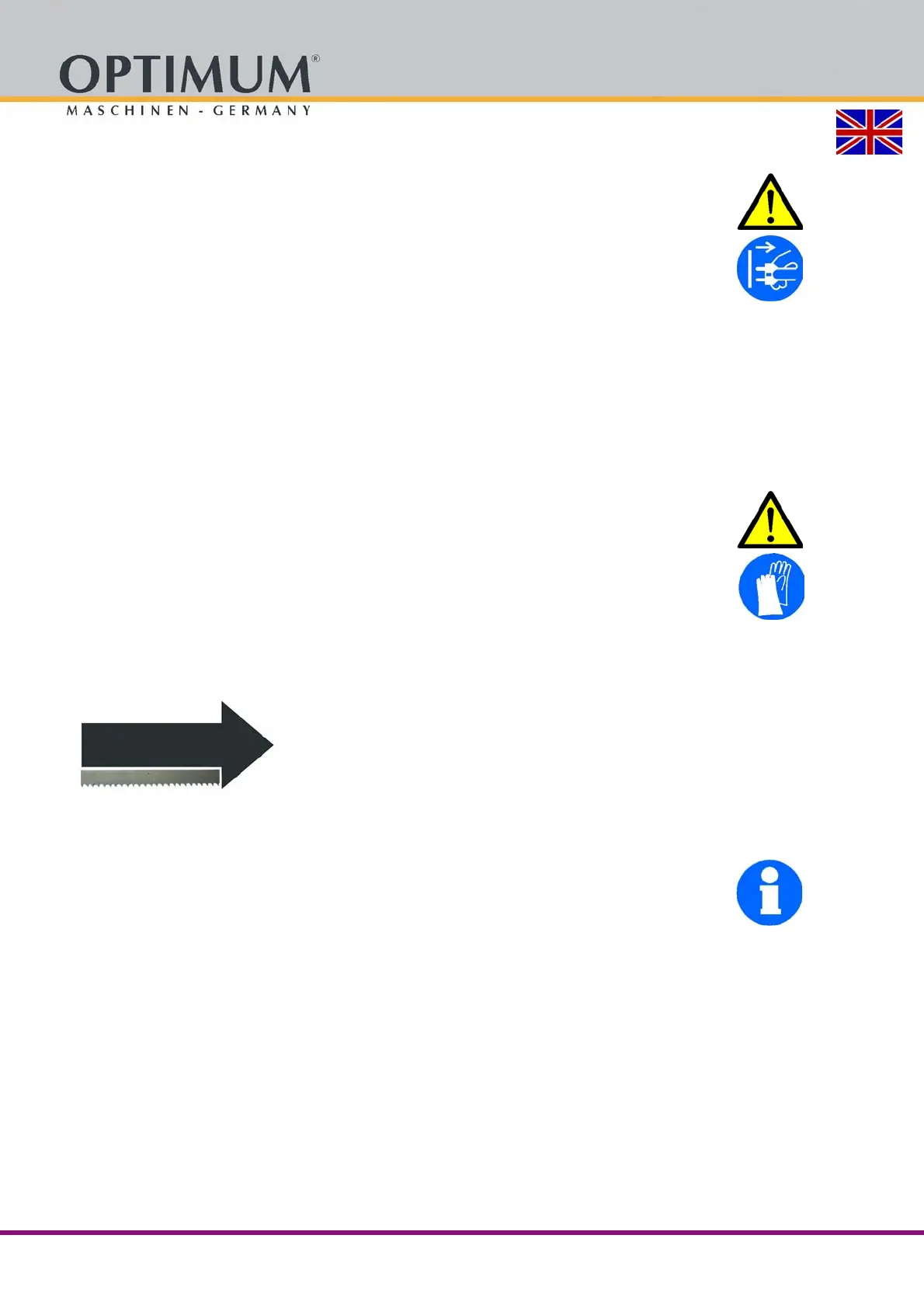

Place a new saw band on the band rolls. Pay attention to the correct saw band direction.
Turn the hand wheel (6) clockwise to increase the saw band tension. The correct saw band
tension is achieved when the saw band can be deflected by 2 mm in the middle with a force
of approx. 40 N.
INFORMATION
The gear inside the drive motor is permanently lubricated. It is not necessary to lubricate it
again.
5.4 Daily maintenance work
Remove the chips and clean the machine.
Check the protective covers for tightness.
