WARNING!
When first commissioning the metal belt saw by inexperienced staff you endanger
people and the machine.
We do not accept any liability for damages caused by incorrectly performed commissioning.
Qualification on page 6
3.5.1 Power supply
Connect the electrical supply cable.
Check the fuse (fuse 10 - 16A) of your electrical supply according to the technical specifica-
tions of the drive power of the metal band saw.
4 Operation
4.1 Overview
4.2 Inserting the workpiece
The machine vice serves as a clamping device for the workpiece.
The machine vice consists of
the work table,

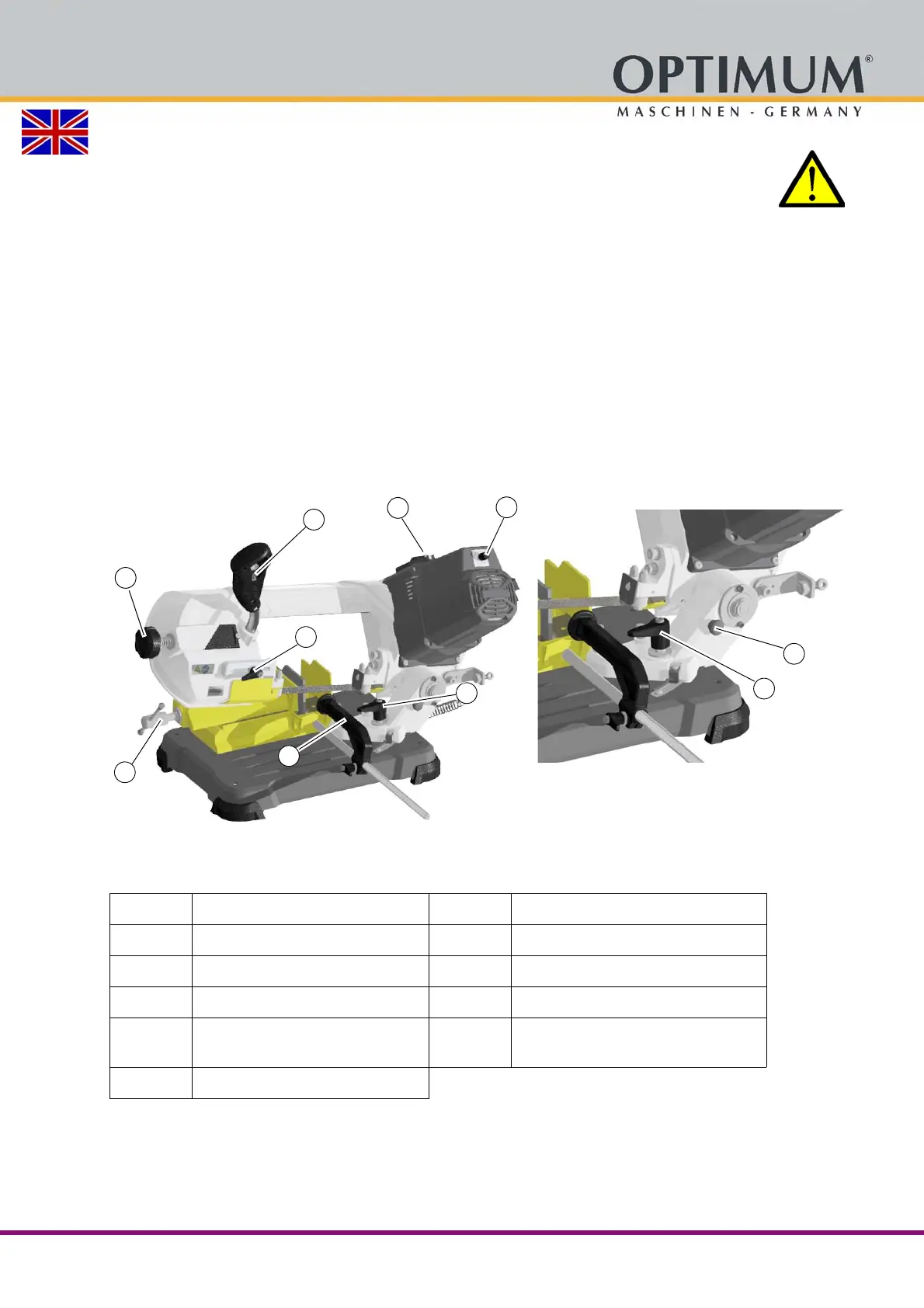

Pos. Designation: Pos. Designation:
1 Lever arm with push button 2 Speed of saw band
3 ON/OFF switch 4 Vice clamping lever
5 Material stop 6 Saw band tension
7 Clamping lever of the saw band
guide
8 Locking pin
9 Saw bow locking lever
