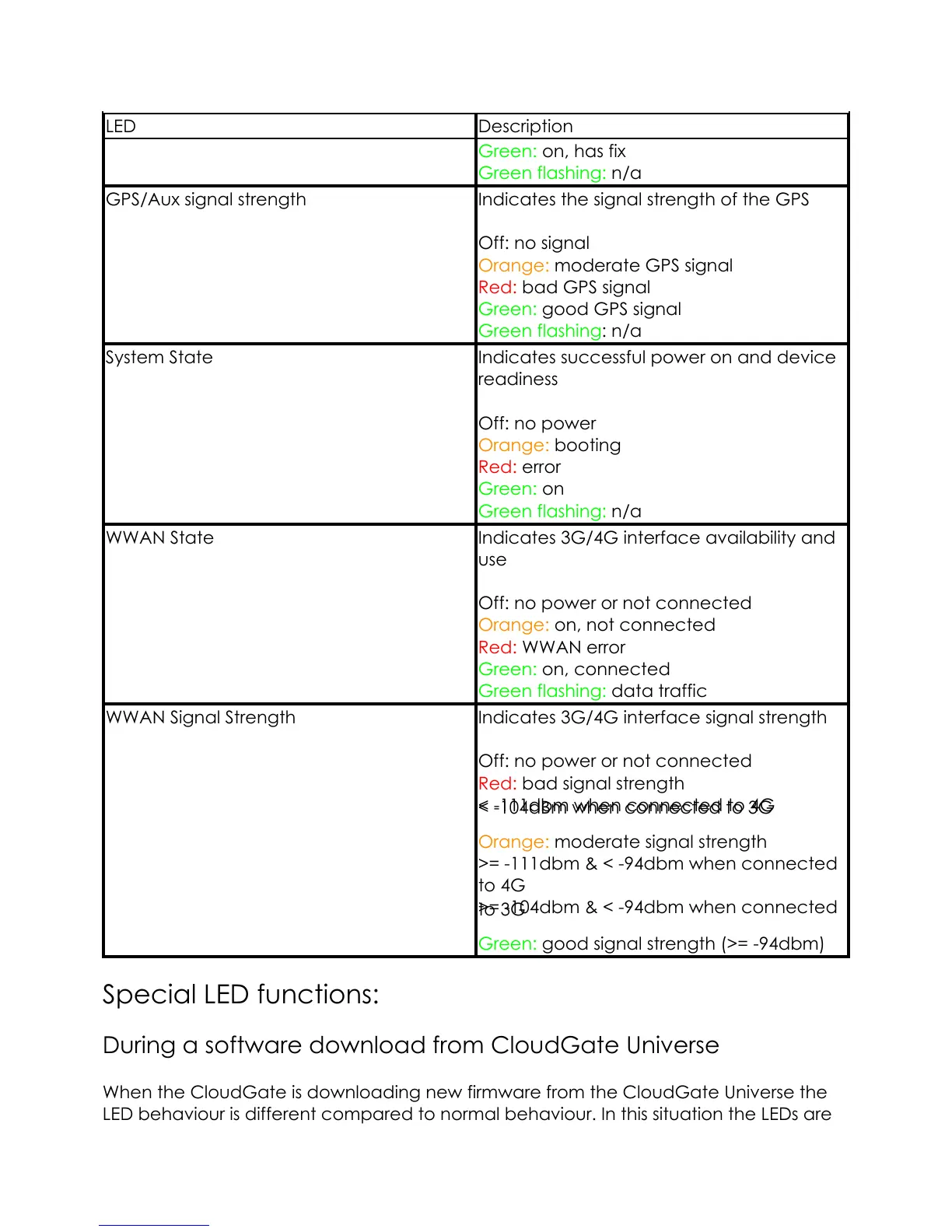

LED Description
Green: on, has fix
Green flashing: n/a
GPS/Aux signal strength Indicates the signal strength of the GPS
Off: no signal
Orange: moderate GPS signal
Red: bad GPS signal
Green: good GPS signal
Green flashing: n/a
System State Indicates successful power on and device
readiness
Off: no power
Orange: booting
Red: error
Green: on
Green flashing: n/a
WWAN State Indicates 3G/4G interface availability and
use
Off: no power or not connected
Orange: on, not connected
Red: WWAN error
Green: on, connected
Green flashing: data traffic
WWAN Signal Strength Indicates 3G/4G interface signal strength
Off: no power or not connected
Red: bad signal strength
< -111dbm when connected to 4G
< -104dBm when connected to 3G
Orange: moderate signal strength
>= -111dbm & < -94dbm when connected
to 4G
>= -104dbm & < -94dbm when connected
to 3G
Green: good signal strength (>= -94dbm)
Special LED functions:
During a software download from CloudGate Universe
When the CloudGate is downloading new firmware from the CloudGate Universe the
LED behaviour is different compared to normal behaviour. In this situation the LEDs are
