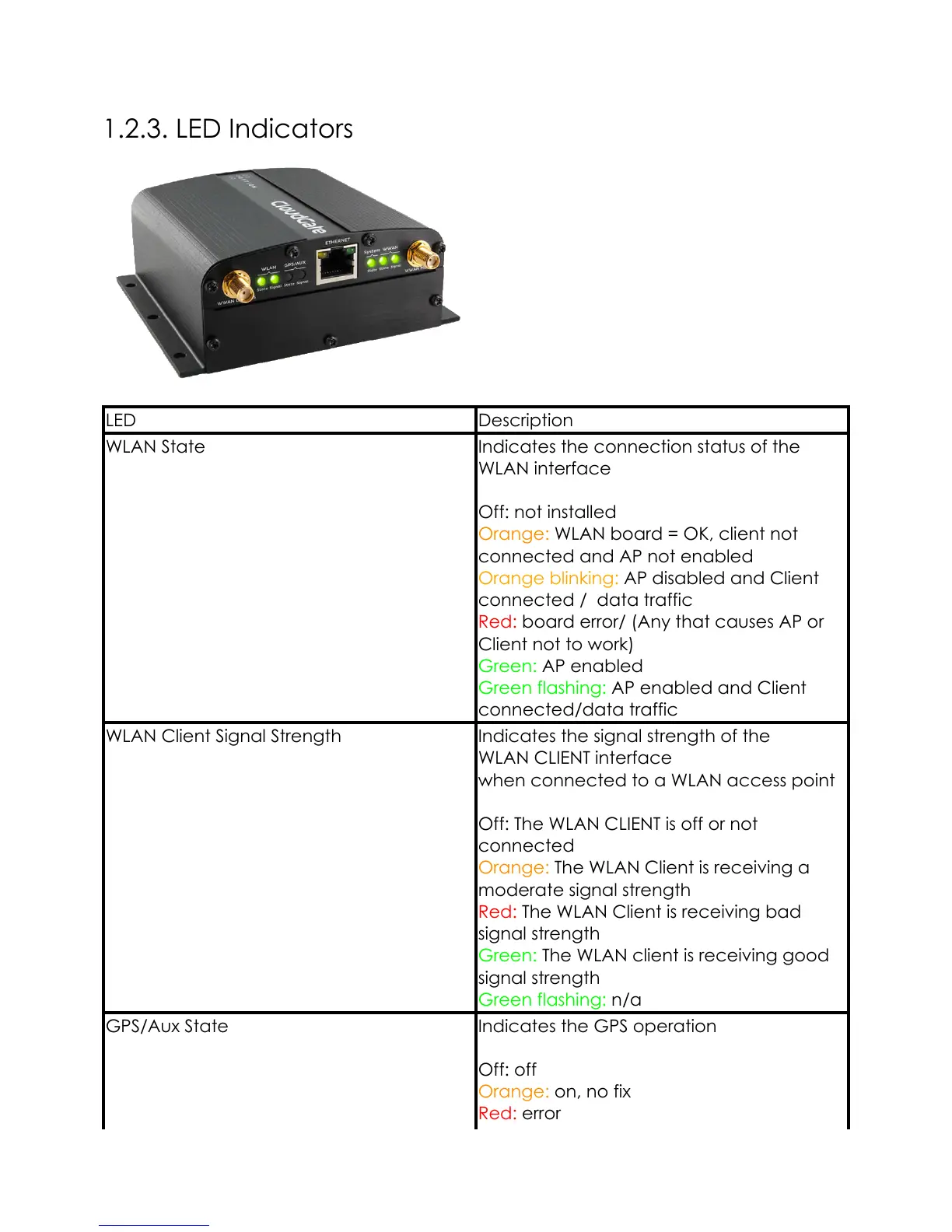

1.2.3. LED Indicators
LED Description
WLAN State Indicates the connection status of the
WLAN interface
Off: not installed
Orange: WLAN board = OK, client not
connected and AP not enabled
Orange blinking: AP disabled and Client
connected / data traffic
Red: board error/ (Any that causes AP or
Client not to work)
Green: AP enabled
Green flashing: AP enabled and Client
connected/data traffic
WLAN Client Signal Strength Indicates the signal strength of the
WLAN CLIENT interface
when connected to a WLAN access point
Off: The WLAN CLIENT is off or not
connected
Orange: The WLAN Client is receiving a
moderate signal strength
Red: The WLAN Client is receiving bad
signal strength
Green: The WLAN client is receiving good
signal strength
Green flashing: n/a
GPS/Aux State Indicates the GPS operation
Off: off
Orange: on, no fix
Red: error
10
