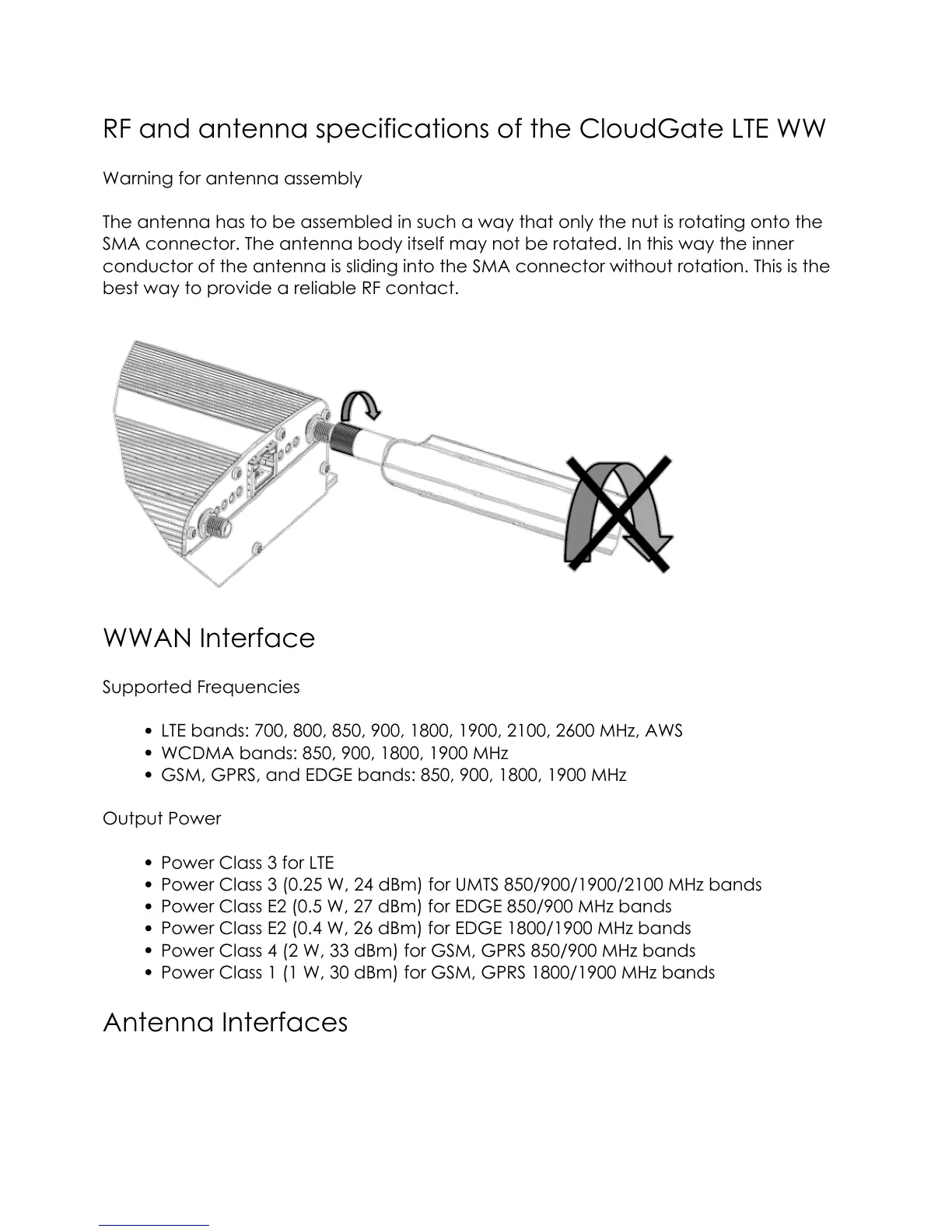

RF and antenna specifications of the CloudGate LTE WW
Warning for antenna assembly
The antenna has to be assembled in such a way that only the nut is rotating onto the
SMA connector. The antenna body itself may not be rotated. In this way the inner
conductor of the antenna is sliding into the SMA connector without rotation. This is the
best way to provide a reliable RF contact.
WWAN Interface
Supported Frequencies
LTE bands: 700, 800, 850, 900, 1800, 1900, 2100, 2600 MHz, AWS
WCDMA bands: 850, 900, 1800, 1900 MHz
GSM, GPRS, and EDGE bands: 850, 900, 1800, 1900 MHz
Output Power
Power Class 3 for LTE
Power Class 3 (0.25 W, 24 dBm) for UMTS 850/900/1900/2100 MHz bands
Power Class E2 (0.5 W, 27 dBm) for EDGE 850/900 MHz bands
Power Class E2 (0.4 W, 26 dBm) for EDGE 1800/1900 MHz bands
Power Class 4 (2 W, 33 dBm) for GSM, GPRS 850/900 MHz bands
Power Class 1 (1 W, 30 dBm) for GSM, GPRS 1800/1900 MHz bands
Antenna Interfaces
