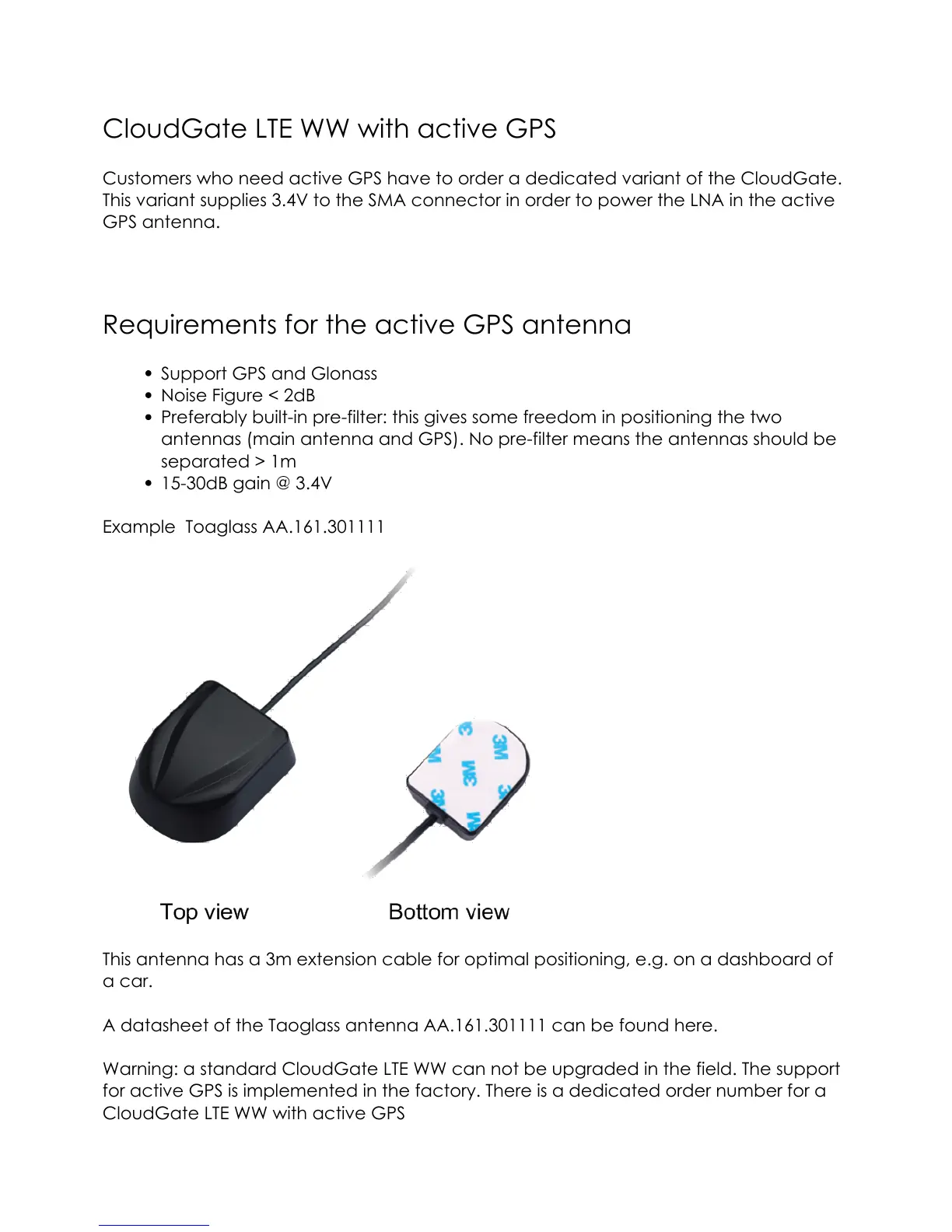

CloudGate LTE WW with active GPS
Customers who need active GPS have to order a dedicated variant of the CloudGate.
This variant supplies 3.4V to the SMA connector in order to power the LNA in the active
GPS antenna.
Requirements for the active GPS antenna
Support GPS and Glonass
Noise Figure < 2dB
Preferably built-in pre-filter: this gives some freedom in positioning the two
antennas (main antenna and GPS). No pre-filter means the antennas should be
separated > 1m
15-30dB gain @ 3.4V
Example Toaglass AA.161.301111
This antenna has a 3m extension cable for optimal positioning, e.g. on a dashboard of
a car.
A datasheet of the Taoglass antenna AA.161.301111 can be found here.
Warning: a standard CloudGate LTE WW can not be upgraded in the field. The support
for active GPS is implemented in the factory. There is a dedicated order number for a
CloudGate LTE WW with active GPS
