A detailed description of the LEDs is given in the section about the LED Indicators.
Bottom Front Panel
The bottom front panel covers the front expansion slot and has to be removed when
installing a Primary Expansion Card.
Option provides a custom panel for the following primary expansion cards:
Low Cost Serial Card
Industrial Serial Card
Ethernet Switch
Ethernet Switch with PoE
Telematics Card
Breadboard Card

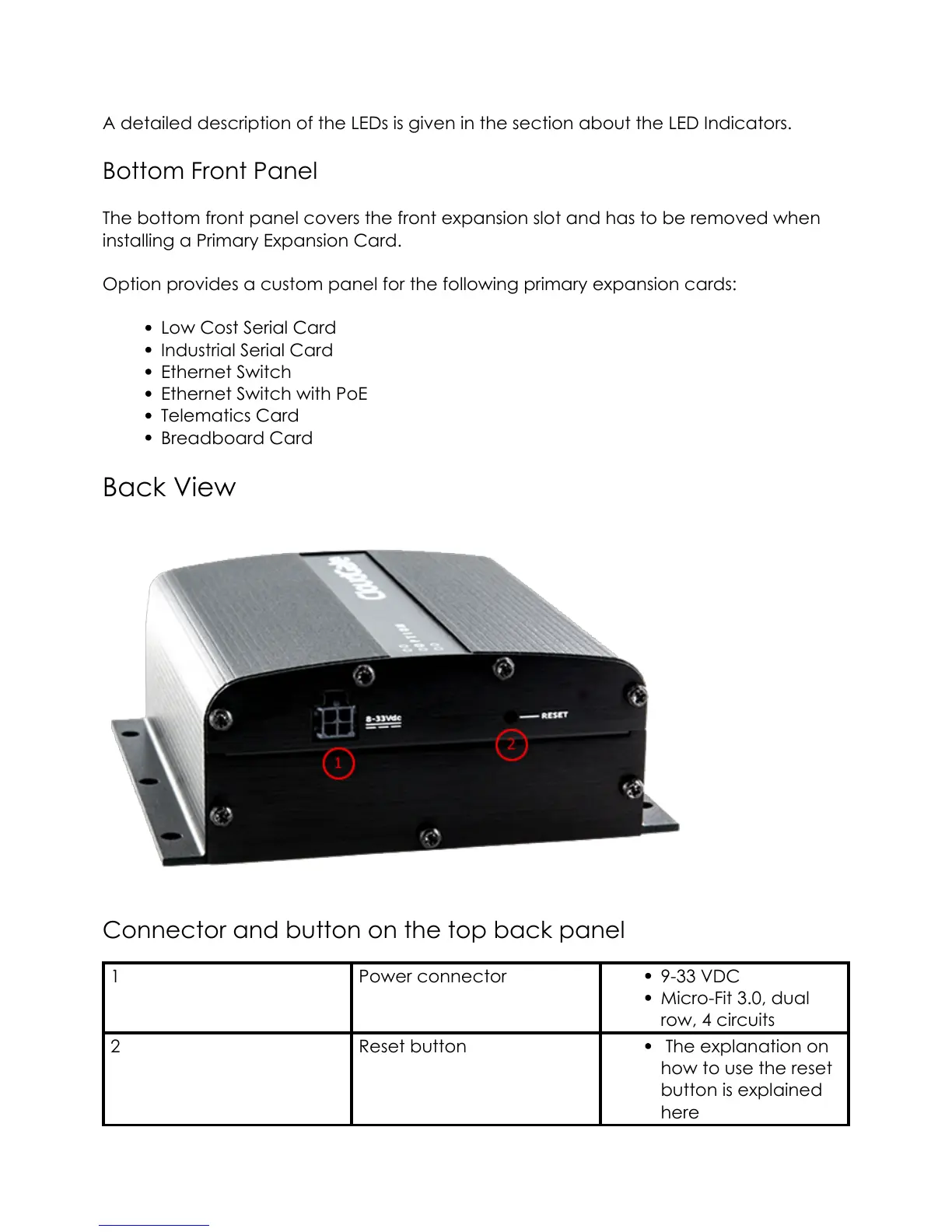

Back View
Connector and button on the top back panel
1 Power connector 9-33 VDC
Micro-Fit 3.0, dual
row, 4 circuits
2 Reset button The explanation on
how to use the reset
button is explained
here
8
