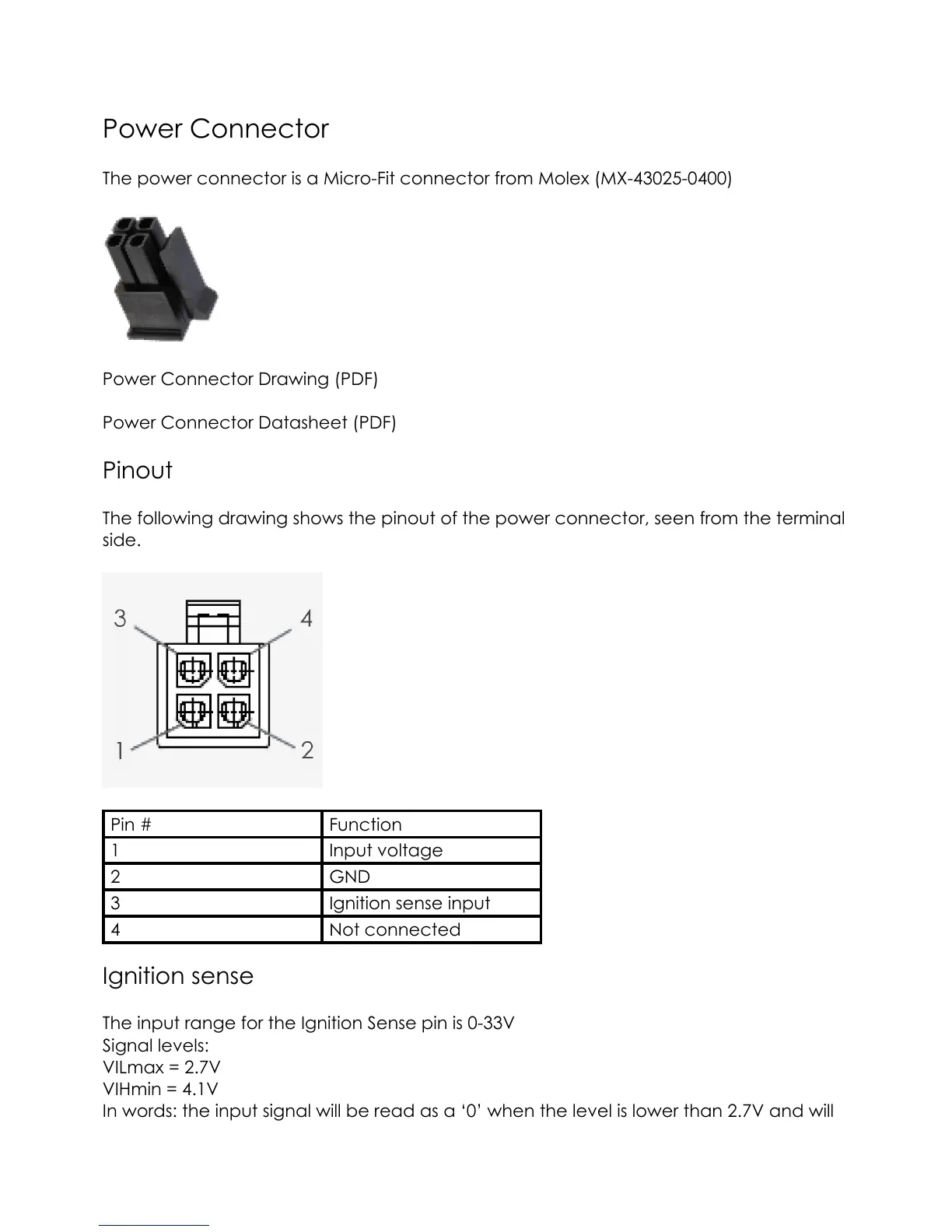

Power Connector
The power connector is a Micro-Fit connector from Molex (MX-43025-0400)
Power Connector Drawing (PDF)
Power Connector Datasheet (PDF)
Pinout
The following drawing shows the pinout of the power connector, seen from the terminal
side.
Pin # Function
1 Input voltage
2 GND
3 Ignition sense input
4 Not connected
Ignition sense
The input range for the Ignition Sense pin is 0-33V
Signal levels:
VILmax = 2.7V
VIHmin = 4.1V
In words: the input signal will be read as a ‘0’ when the level is lower than 2.7V and will
24
