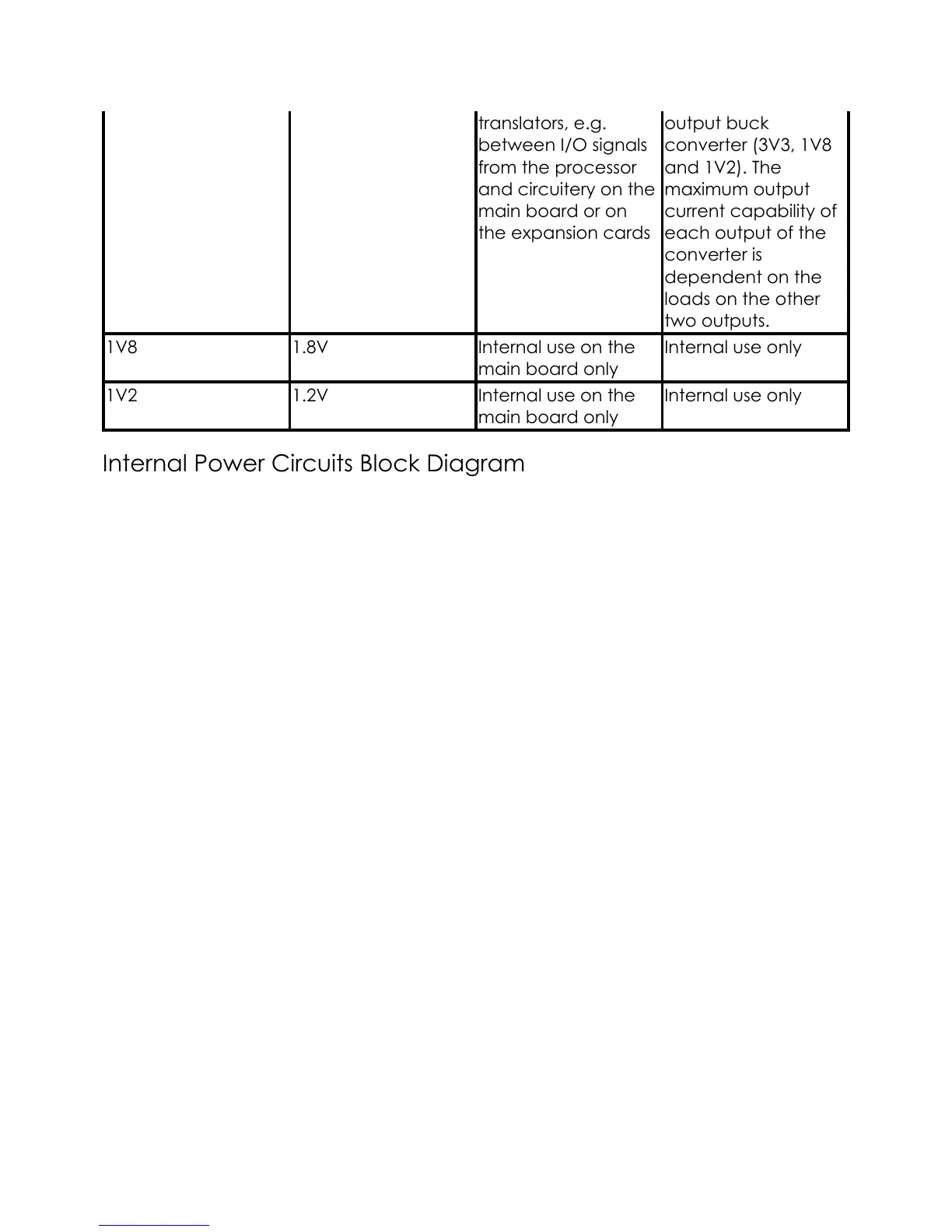

translators, e.g.

between I/O signals

from the processor

and circuitery on the

main board or on

the expansion cards

output buck

converter (3V3, 1V8

and 1V2). The

maximum output

current capability of

each output of the

converter is

dependent on the

loads on the other

two outputs.

1V8 1.8V Internal use on the

main board only

Internal use only

1V2 1.2V Internal use on the

main board only

Internal use only

Internal Power Circuits Block Diagram
