Optoma 3 Series User Manual

ADDITIONAL INFORMATION
114 English
9 8 7 6
5 4 3 2 1
RS232 Protocol Function List
Note: IFP supports RS232 and RJ45 (port 23) control command.

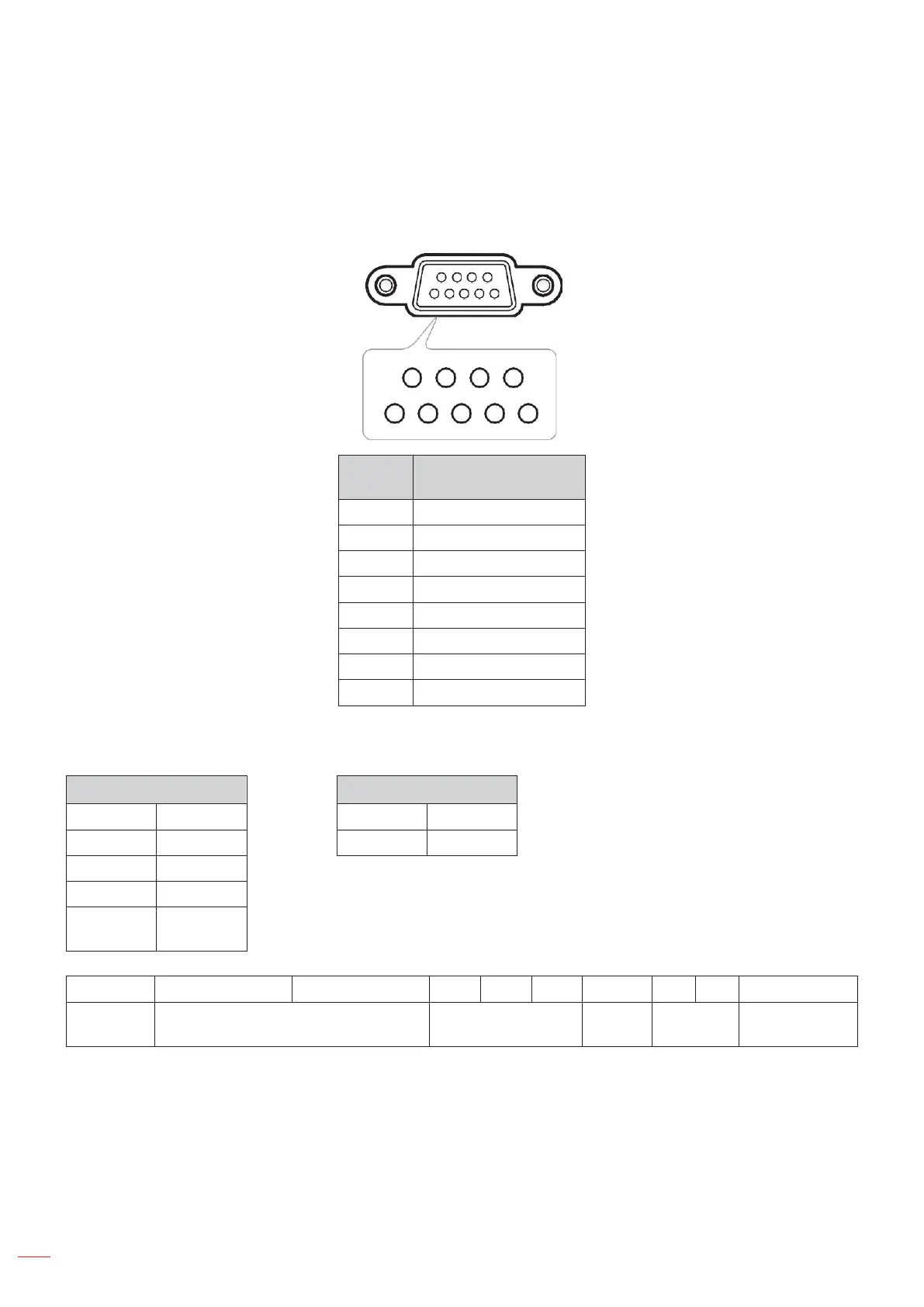

RS232 Pin Assignments
Pin No.
Spec.
(from IFP side)
1
N/A
2
TXD
3
RXD
4
N/A
5
GND
6
N/A
7
N/A
8
N/A
RS232 RJ45 Control Connection
RS232 Settings
LAN Control Settings
Baud Rate
9600
IP
Machine IP
Data Bits
8
Port
23
Parity
None
Stop Bits
1
Flow
Control
None
~
X
X
X
X
X
X
X
CR
Lead Code
Device ID
(where 01 indicates Device ID = 01)
Command ID
Space
Variable
Carriage return
