Optoma HD83 - Adjusting Projection Image Size

English
22
Installation
Diagonal length
(inch) size of 16:9
Screen
Screen Size W x H (16:9) Projection distance (D)
Offset
(Hd)
(m) (feet) (m) (feet)
Width Height Width Height wide tele wide tele (m) (feet)
30 0.66 0.37 2.18 1.23 - 1.51 - 4.97 0.11 0.37
45 1.00 0.56 3.27 1.84 1.49 2.27 4.88 7.45 0.17 0.55
50 1.11 0.62 3.63 2.04 1.65 2.52 5.43 8.28 0.19 0.61
60 1.33 0.75 4.36 2.45 1.98 3.03 6.51 9.93 0.22 0.74
70 1.55 0.87 5.08 2.86 2.32 3.53 7.60 11.59 0.26 0.86
80 1.77 1.00 5.81 3.27 2.65 4.04 8.68 13.24 0.30 0.98
90 1.99 1.12 6.54 3.68 2.98 4.54 9.77 14.90 0.34 1.10
100 2.21 1.25 7.26 4.09 3.31 5.05 10.85 16.55 0.37 1.23
120 2.66 1.49 8.72 4.90 3.97 6.05 13.02 19.86 0.45 1.47
150 3.32 1.87 10.89 6.13 4.96 7.57 16.28 24.83 0.56 1.84
200 4.43 2.49 14.53 8.17 6.61 10.09 21.70 33.11 0.75 2.45
300 6.64 3.74 21.79 12.26 9.92 15.14 32.55 49.66 1.12 3.68

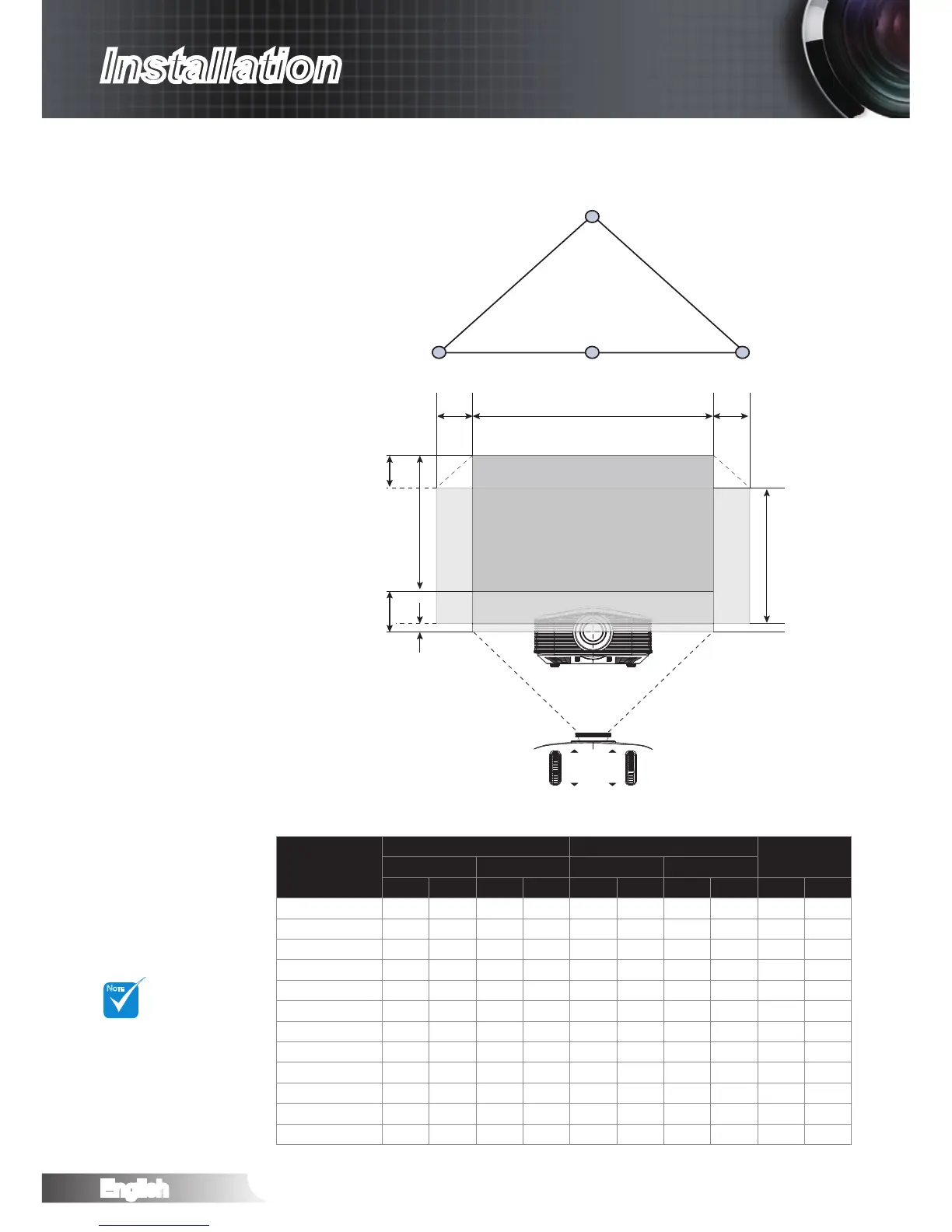

PureShift Range Diagram
V
V
130%(V), 0%(H)
-15%(H) 15%(H)
105%(V)
UP/DOWN
RIGHT/LEFT
H
H x 15% H x 15%
V x 25%
Offset max=V x 5%
Offset max=V x 30%
Adjusting Projection Image Size
This graph is for
user’s reference
only.

NOTE
