Oracle ZFS ZS3 Series Customer Service Manual

Servicing the 7x20 Controller

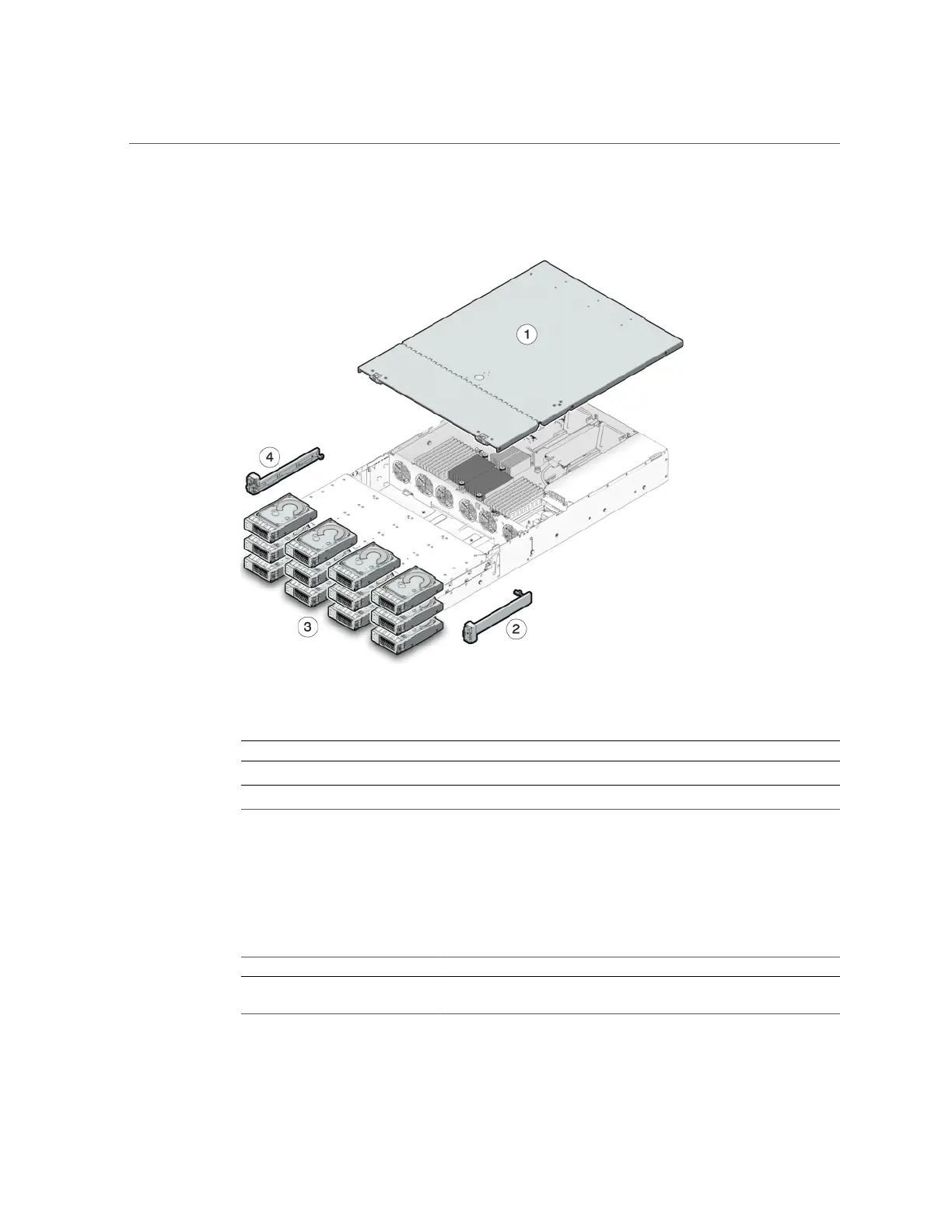

FIGURE 59
7120 Controller I/O Components
Figure Legend
1 Top Cover 3 Hard Disk Drives
2 Right Control Panel Light Pipe Assembly 4 Left Control Panel Light Pipe Assembly
7120 NIC/HBA Options
The following table describes NIC/HBA options for the 7120.
TABLE 47
7120 Controller NIC/HBA Options
Mktg Part Number Description Mfg Part Number
SG-XPCIESAS-GEN2-Z 2-port External Sun Thebe SAS (x4)
HBA, PCIe
594-5889-01
190 Oracle ZFS Storage Appliance Customer Service Manual • February 2016
