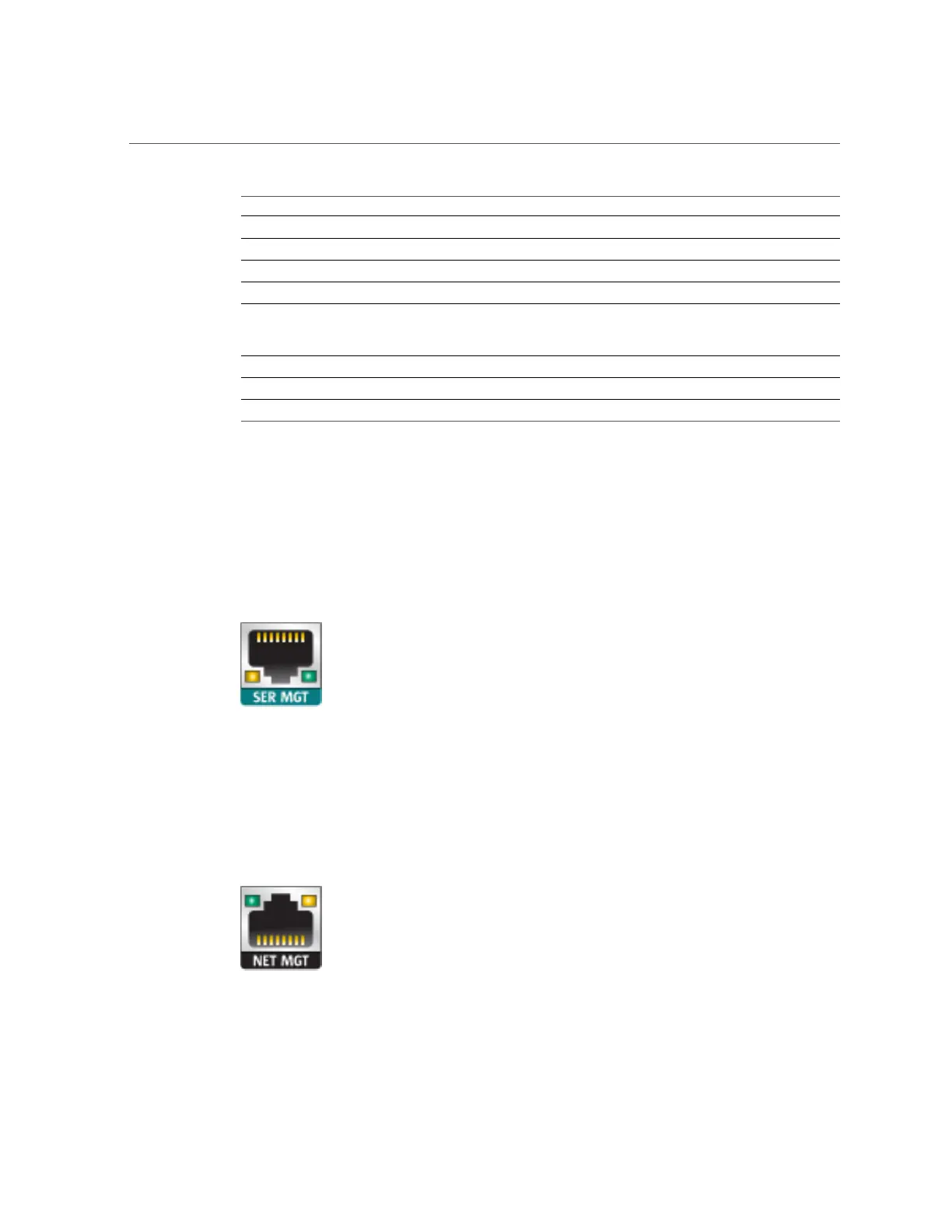

Servicing the ZS3-4 Controller
PCIe Card Slot Order
2. 8Gb FC HBA Slot 9
Additional FC HBAs are installed last
3. InfiniBand HCAs Slot 3, 6, 4, 5, 2, 7
4. 2-port 10Gb Ethernet NIC Slot 3, 6, 4, 5, 2, 7, 9
Note: If you are adding a 2-port 10Gb Ethernet Optical
NIC and 2-port 10Gb Ethernet Copper NIC, the 10Gb
Ethernet Optical NIC has slot priority.
5. 4-port 1Gb Ethernet NIC Slot 3, 6, 4, 5, 2, 7, 9
6. 16Gb FC HBA Slot 3, 6, 4, 5, 2, 7, 9
7. Remaining 8Gb FC HBAs Slot 3, 6, 4, 5, 2, 7 (slot 9, see step 2)
ZS3-4 Connectors
The serial management connector (SER MGT) is an RJ-45 connector and provides a terminal
connection to the SP console.
FIGURE 22
ZS3-4 Controller Serial Management Port
The network management connector (NET MGT) is an RJ-45 connector and provides a LAN
interface to the SP console.
FIGURE 23
ZS3-4 Controller Network Management Port
