Orange Pi Zero 2 - 13 Pin Header for Addon Board

30
THE OFFICIAL ORANGE PI USER'S GUIDE
13 pin header for Addon board

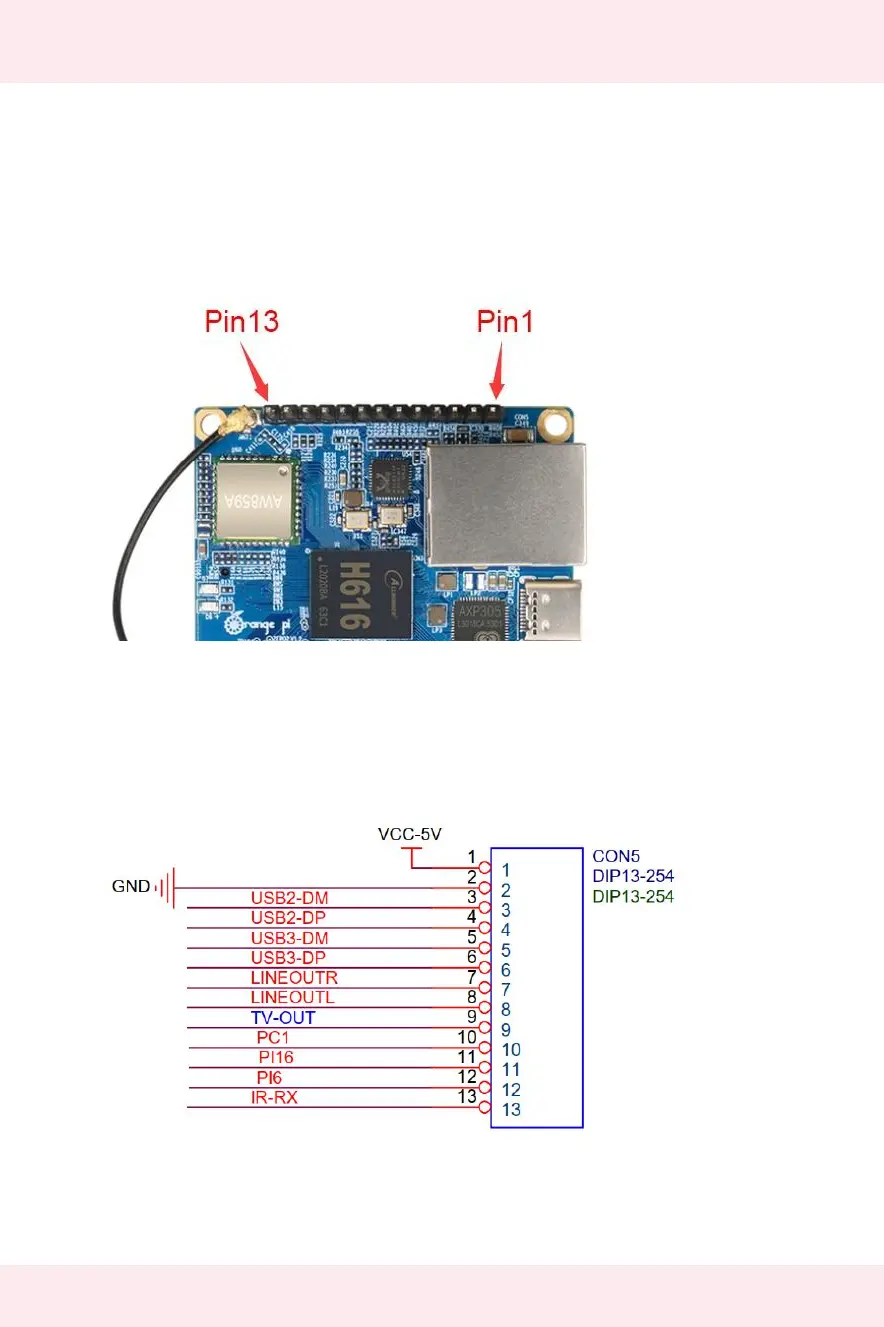

Please refer to the figure below for the sequence of the Orange Pi Zero 2 dev board
13 pin adapter board interface pins
The schematic diagram of the 13pin interface of the Orange Pi Zero 2 development
board is shown below
