Orange Pi Zero 2 - 26 Pin GPIO Expension Header

31
THE OFFICIAL ORANGE PI USER'S GUIDE
26 pin GPIO expension header

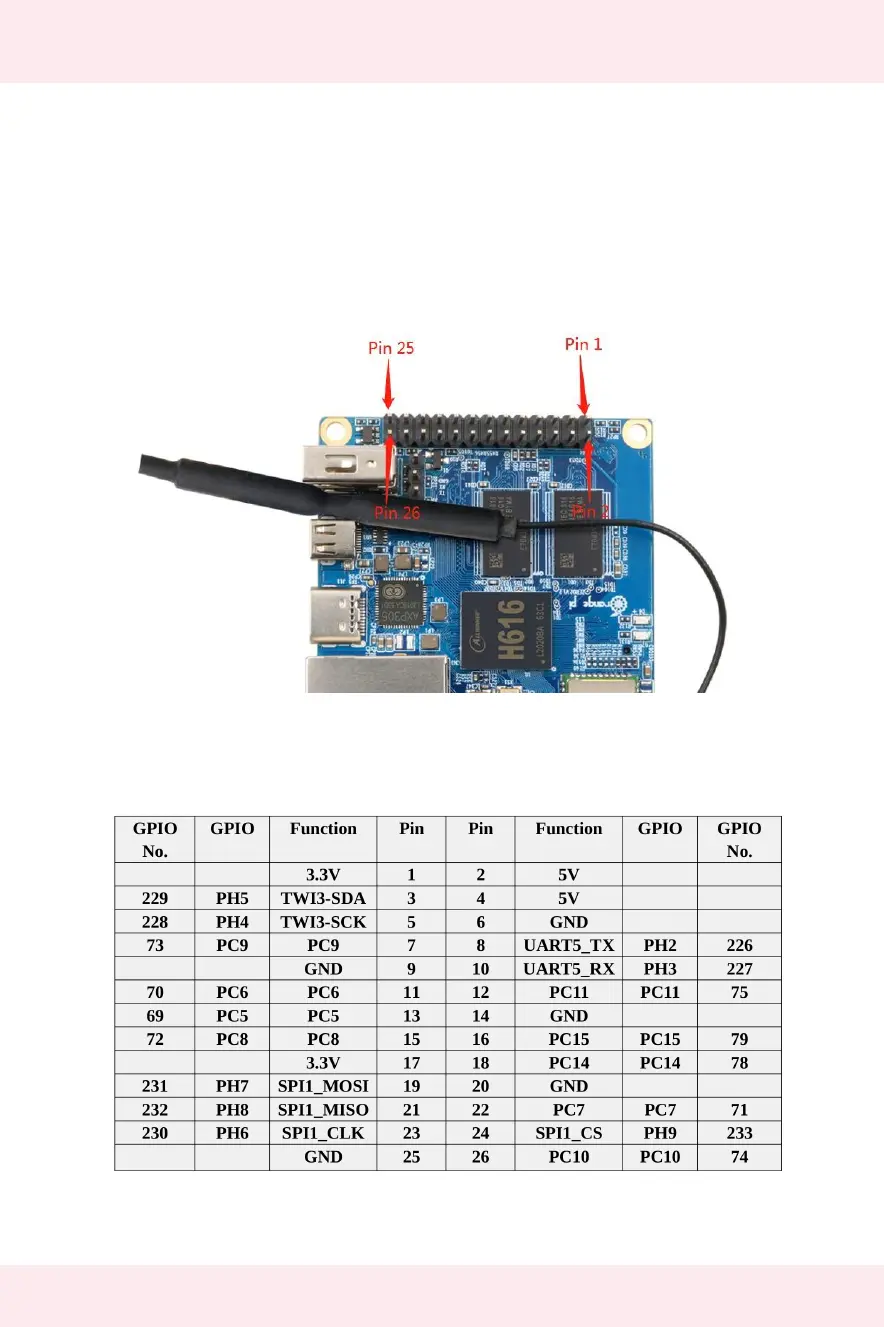

Please refer to the figure below for the sequence of the 26 pin of the Orange Pi Zero2
development board
The function of the 26 pin of the Orange Pi Zero2 development board is shown in the
table below
