THE OFFICIAL ORANGE PI USER'S GUIDE
Hardware Specification
• Allwinner H616, Quad core Cortex-A53 64-bit SoC @ 1.5GHz
• 512MB or 1GB DDR3 SDRAM (depending on model)
• H.265 (4kp60 decode), H264 (4kp30 decode, 4kp25 encode or 1080p60 encode)
• ARM G31 GPU Supports OpenGL ES 3.2/2.0/1.0, Vulkan 1.1 OpenCL 2.0
• AW859A module Support IEEE 802.11 a/b/g/n/ac wireless, Bluetooth 5.0
• 1000M/100M/10M Ethernet
• Micro-HDMI ports (up to 4kp60 supported)
• 3 USB 2.0 ports. (Two of them are via 13pin interface board)
• 26 pin GPIO header with I2C, SPI, UART and multiple GPIO ports
• 13 pin GPIO header with 2 USB Host, IR pin, TV-out, Audio and GPIO ports
• 5V DC via USB-C connector (minimum 2A)
• OS: Android10, Ubuntu and Debian
• Dimension: 85mm×56mm
• Weight: 30g

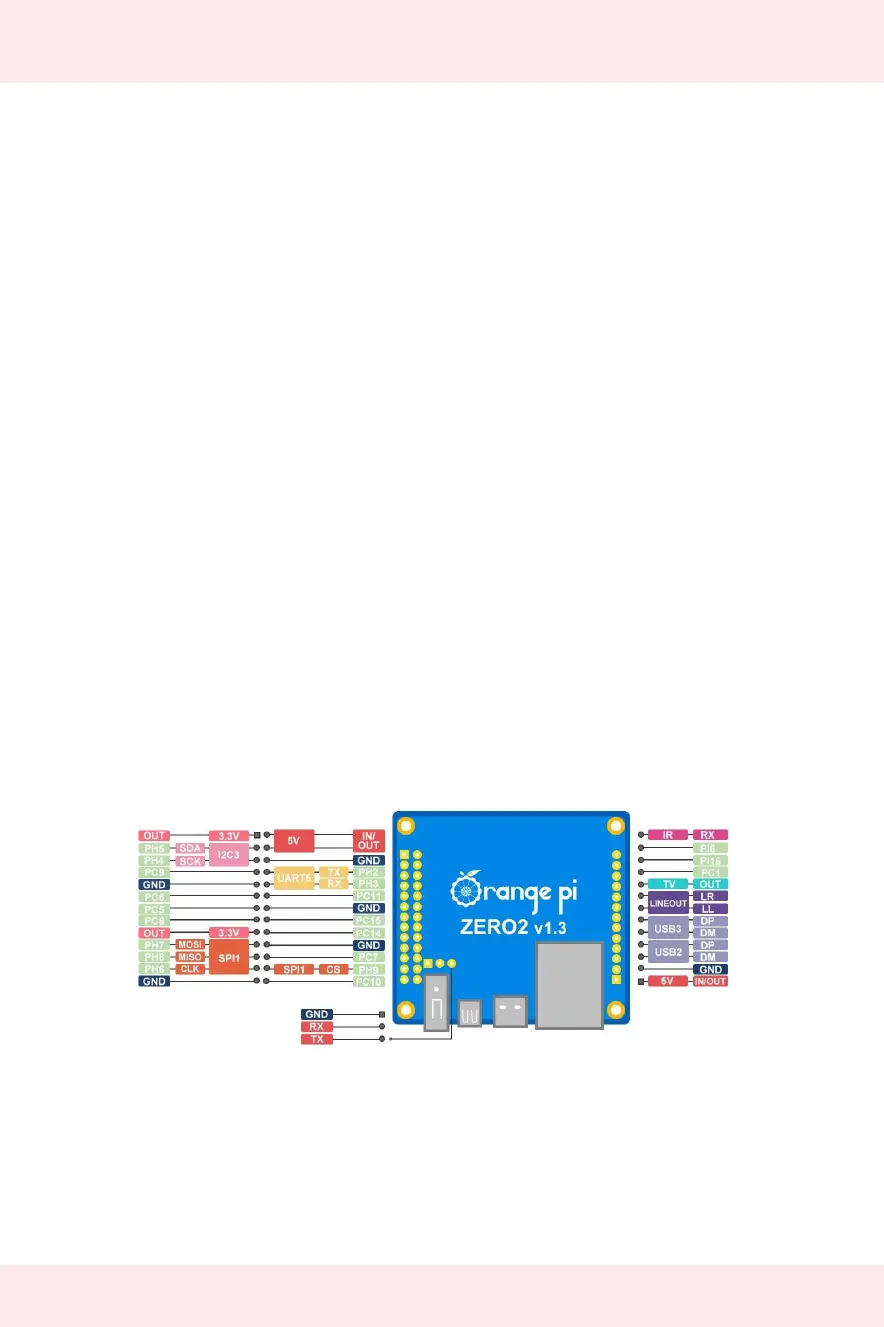

Pinout Diagram
