60

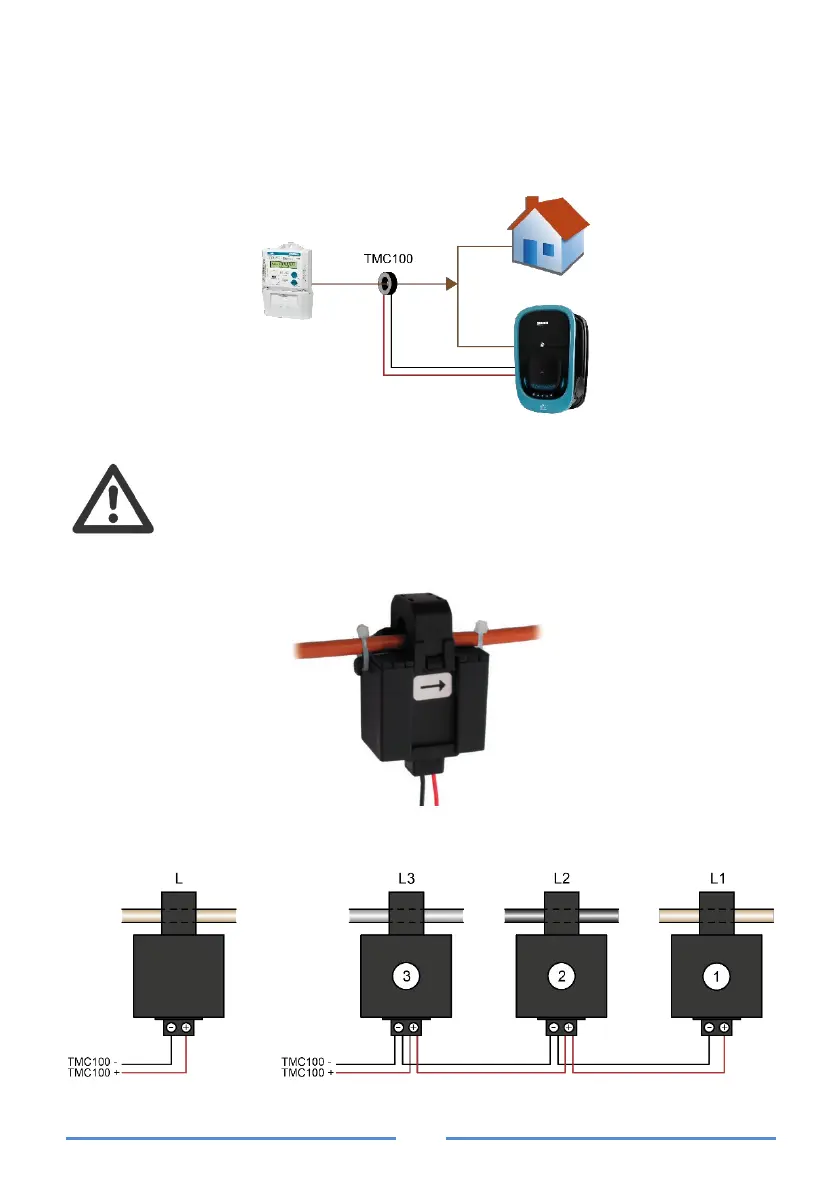

Connection of the load modulator
Open the TMC100 transformer (included) and couple it on the phase cable (L)
so that it measures the total consumption of the house and the EV charger
VIARIS COMBI+.
 TMC100 must be installed following the direction of the
current as indicated.
 It should not be used in installations with currents exceeding
100 A since the measurement and therefore modulation may
be incorrect.
METER
HOUSEHOLD
HOUSEHOLD +
CHARGER
I max 100 A
Single phase charger
connection
Three-phase
charger connection
