2.各部の名称とはたらき
- 17 -
⑨Differential lock lever
Normally, use it in the "off" position. When working on a gentle slope or on a soft ground, or
when one side of the rear wheel is slippery and it is difficult to go straight, or when loading
/ unloading to / from a truck, set the diff lock lever to the “ON” position to set both sides of
the rear wheel tires are directly connected, which improves straightness.
If you use a flat ground, the turning radius will be large, tires will be worn out, and it may
cause mission damage.
⑩Parking brake pedal
In case of an emergency, if you fully depress the pedal, the brake will be applied, then
machine will be stopped, and the shift lever will be returned to the "neutral" position. For
normal stop operation, always use the change pedal or shift lever to stop. keeping the pedal
depressed and lock with the brake stopper, it will be a parking brake. The lock is released
when you step further. The engine cannot start unless the
pedal is depressed (locked).
⑪Blade replacement cover
When inspecting or replacing the Blade, you can fix it with the cover open.
〈5.4.1
Refer to How to open and close the Blade replacement cover
.〉
Be sure to close the Blade replacement cover while working. Mowing work with the cover
open is extremely dangerous as it causes increased scattering of foreign matter such as
stones. Make sure the cover is closed and locked when except Blade inspected or replaced.

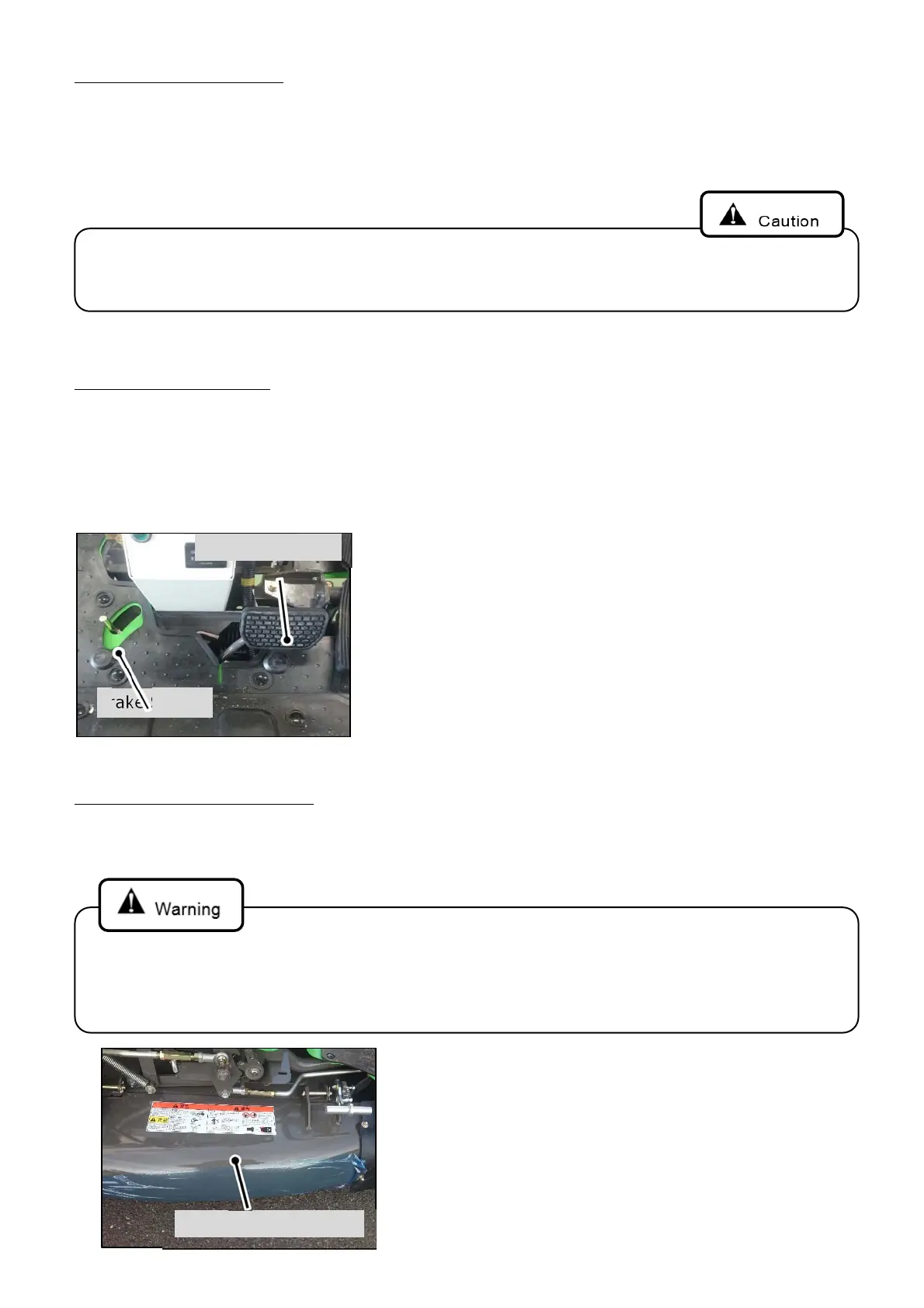

Parking brake pedal
Brake Stopper
Blade replacement cover
