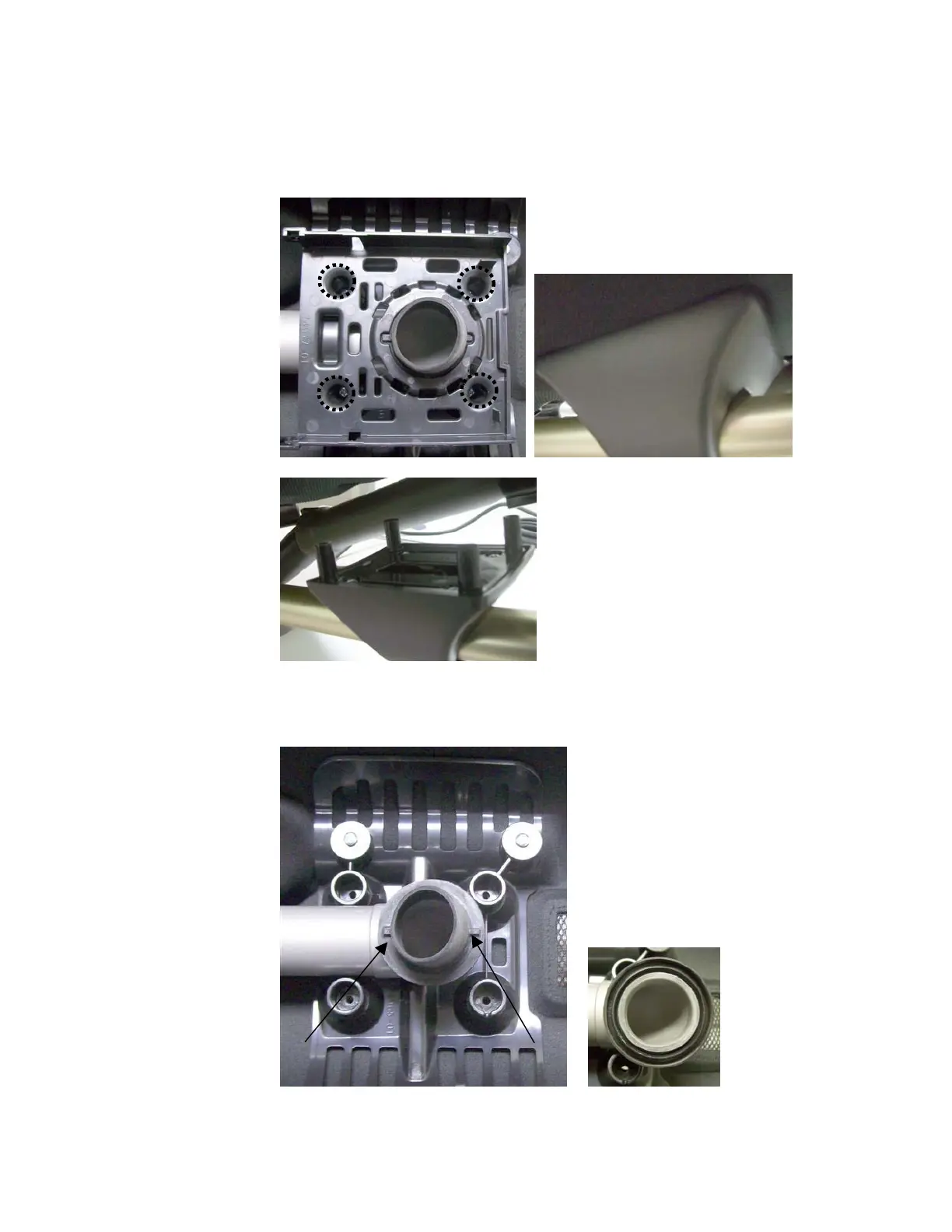

e. Extract the four screws indicated (Picture 1) and remove the
bag dock rear. You have unfastened the bag dock rear from the
slide assembly (Picture 2) this allows you to remove the outer
bag from the unit (Picture 3).
1
2
f. For Your Information: If necessary, lift the deflector (Picture 1)
off of the adapter ring (Picture 2) and the adapter off of the
debris tube.
1
Upper Bag Stiffener
Rubber Deflector – note the orientation of the tabs
Adapter Ring
Increase Quality Through Interaction with the Field
18
