Drive Sprocket
95 Mechanical Timber Harvesting Handbook

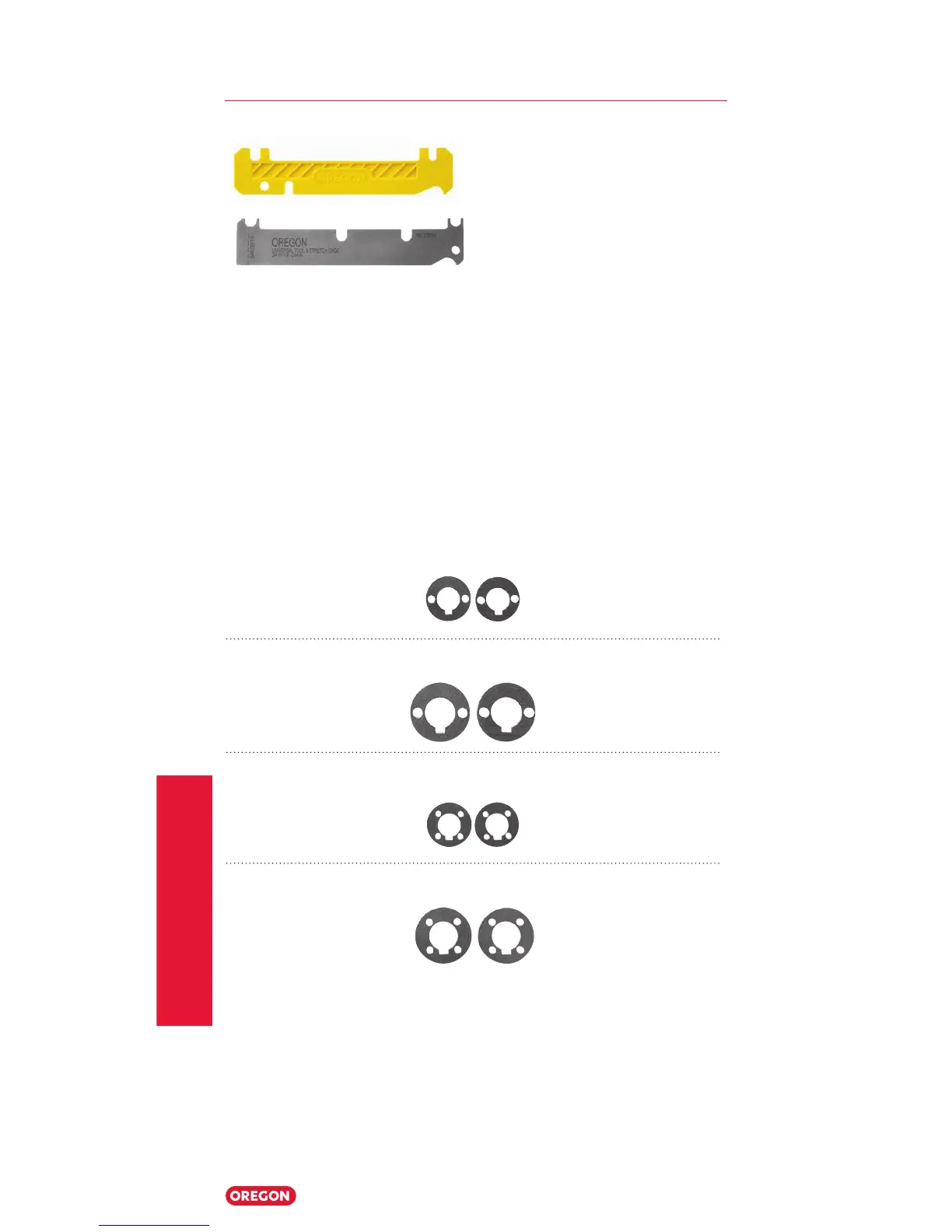

Drive Sprocket Alignment
596397 .404" Pitch
Harvester Multi-Purpose Tool
533700 3/4" Pitch
Harvester Multi-Purpose Tool
1. Mount your harvester guide bar on your harvester head.
2. Using the tool that matches your saw chain pitch, place the
Harvester Multi-Purpose tool into the groove of your guide bar
and slide it back until it extends to the drive sprocket.
3. Adjust the drive sprocket’s position on the drive shaft until it’s
centered on the Harvester Multi-Purpose Tool.
4. Install shims as necessary to ensure alignment.
5. Secure the drive sprocket in place.
OR-B050 • 0.5 mm
OR-B100 • 1.0 mm
OR-C050 • 0.5 mm
OR-C100 • 1.0 mm
