Oregon Harvester - Parts of a Cutter; Parts of Saw Chain; How a Cutter Works

Saw Chain
Mechanical Timber Harvesting Handbook 20
Saw Chain

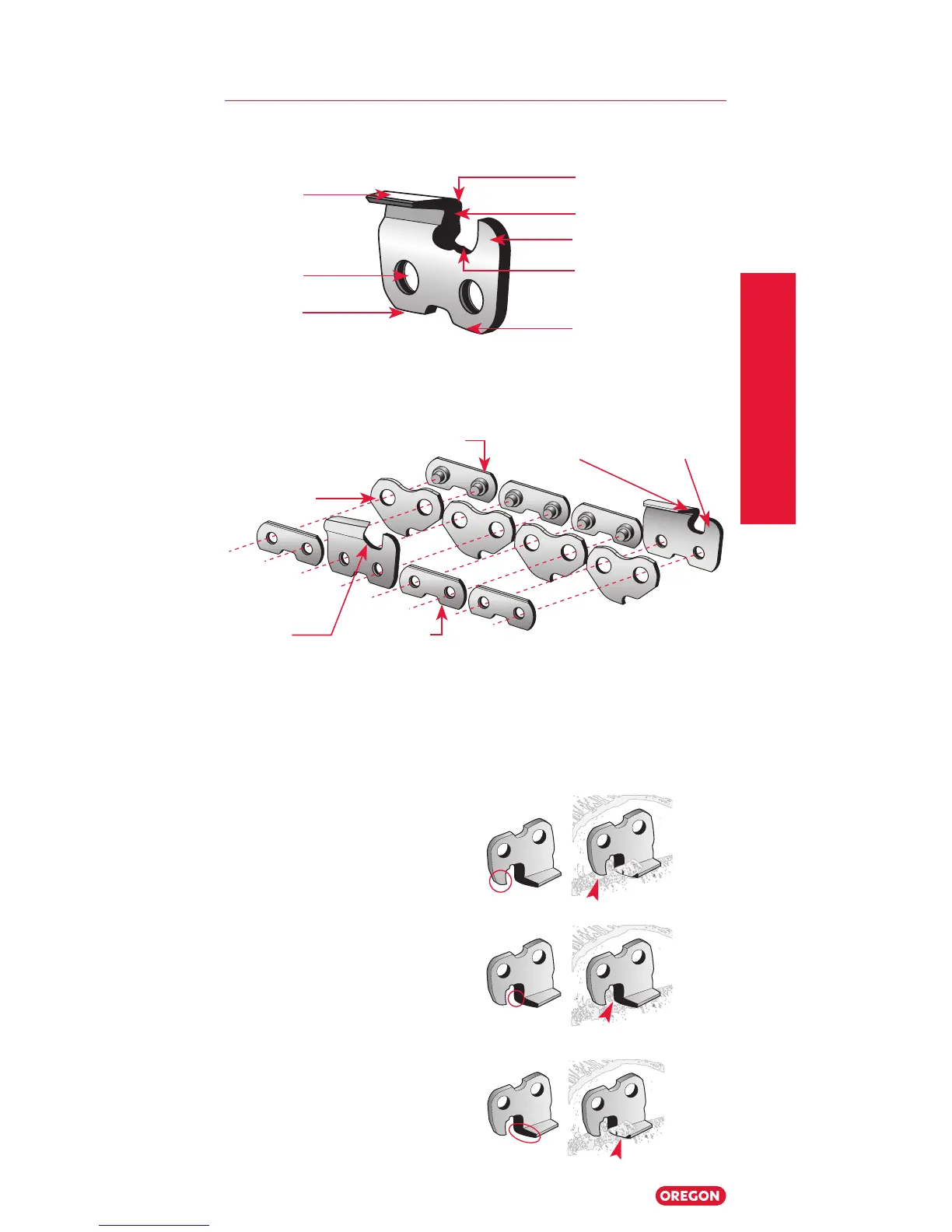

Parts of a Cutter
Parts of a Saw Chain
How a Cutter Works
Understanding how cutters work can help you realize why proper
saw chain maintenance is so important.
1. The depth gauge rides on
the wood and controls the
bite of the working corner.
2. The working corner and
side plate sever the wood
fibers across the grain.
3. The top-plate cutting angle
chisels out the severed
wood fibers, lifting them up
and out of the kerf.
Working (cutting)
corner
Top plate
Rivet hole
Heel
Toe
Depth gauge
Gullet
Side plate
Rivet
Drive link
Left-hand
cutter
Depth
gauge
Right-hand
cutter
Tie-strap
