Oregon Harvester - Page 31

Saw Chain
Mechanical Timber Harvesting Handbook 26

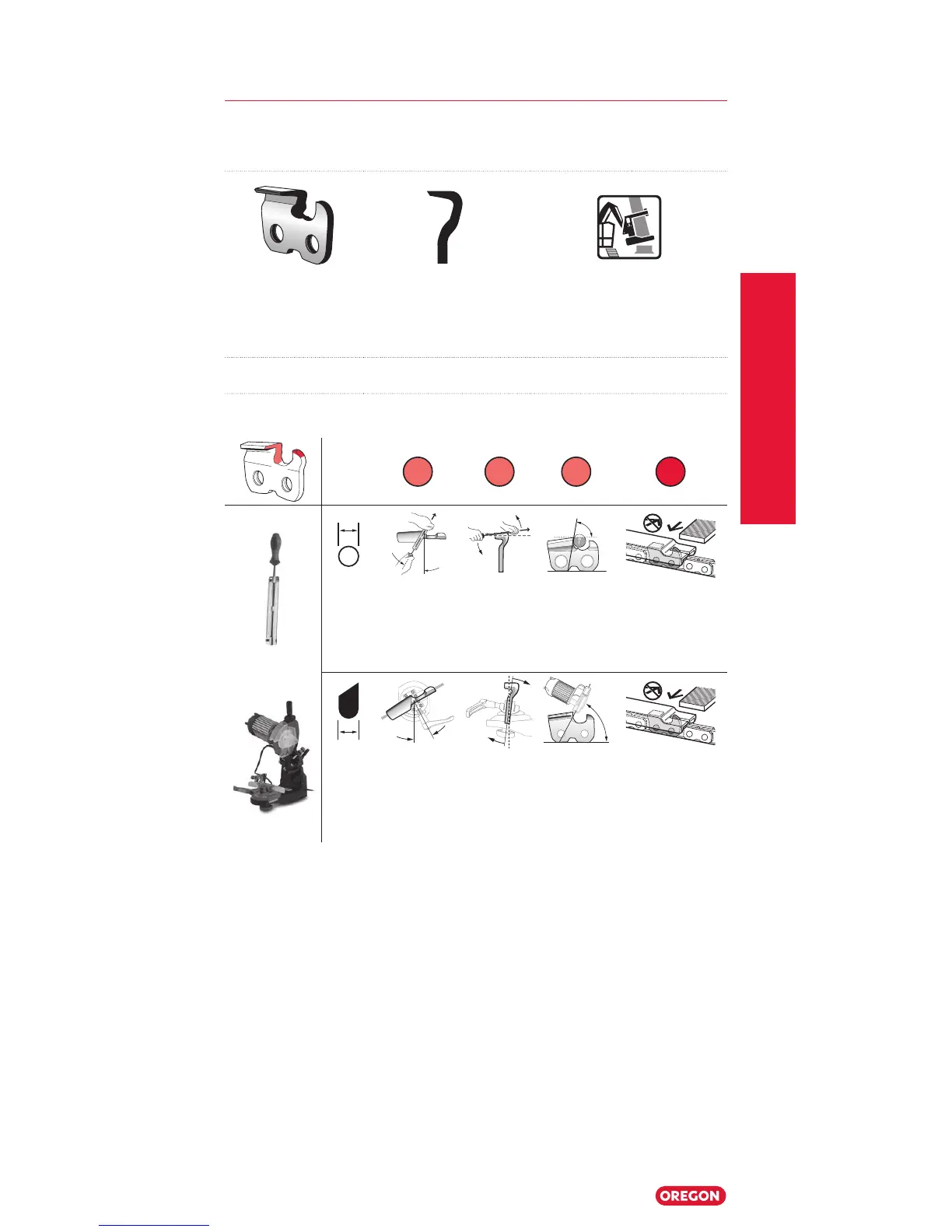

Semi-Chisel End View Harvester ONLY
File File
File
Guide
Depth
Gauge
5-3/4"
Grind
Wheel
4-1/8"
Grind
Wheel
90410 12211 107529 26800 OR534-316 –
533700 Harvester multi-purpose tool
|X|
A B
C
D
5/16" 30° 0° 80°
.060"
1.52 mm
5/16" 30° 0° 80°
.070"
1.78 mm
5/16" 30° 0° 50°
.060"
1.52 mm
5/16" 30° 0° 50°
.070"
1.78 mm
11H cutters are set to .060" / 1.52 mm at the factory and should
be left at those settings for cold cutting conditions. In other
conditions, .070" / 1.788 mm will yield better cutting performance.
