Oregon Harvester - Page 71

Guide Bar
Mechanical Timber Harvesting Handbook 66

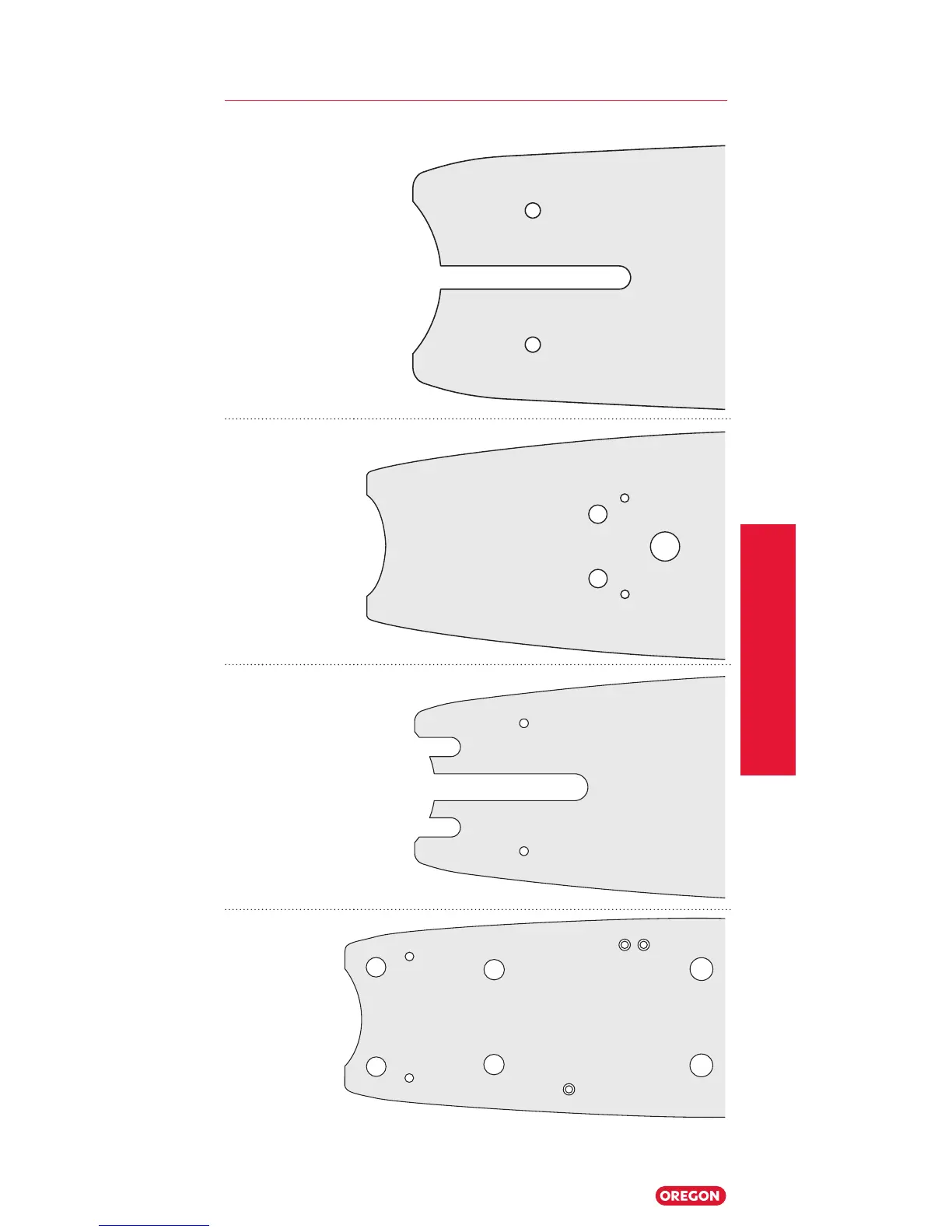

3/4" Pitch Guide Bar Mounts
K187
K187
1
2
2
Drive sprocket
tooth count:
7, 8
Dimensions:

.375"
x2.966"

.250"
K205
1
2
2
Drive sprocket
tooth count:
7, 8
Dimensions:

.645"

.410"
K225
1
2
2
K225 3/4”
Drive sprocket
tooth count:
7, 8
Dimensions:

.581"
x 3.288"

.413"
x .889"
T043 RSN
1
1
3
3
2
2
Drive sprocket
tooth count:
9, 10
Dimensions:

.609"

.562"

.531"
