Oregon Harvester - Guide Bar Maintenance and Repair

Guide Bar

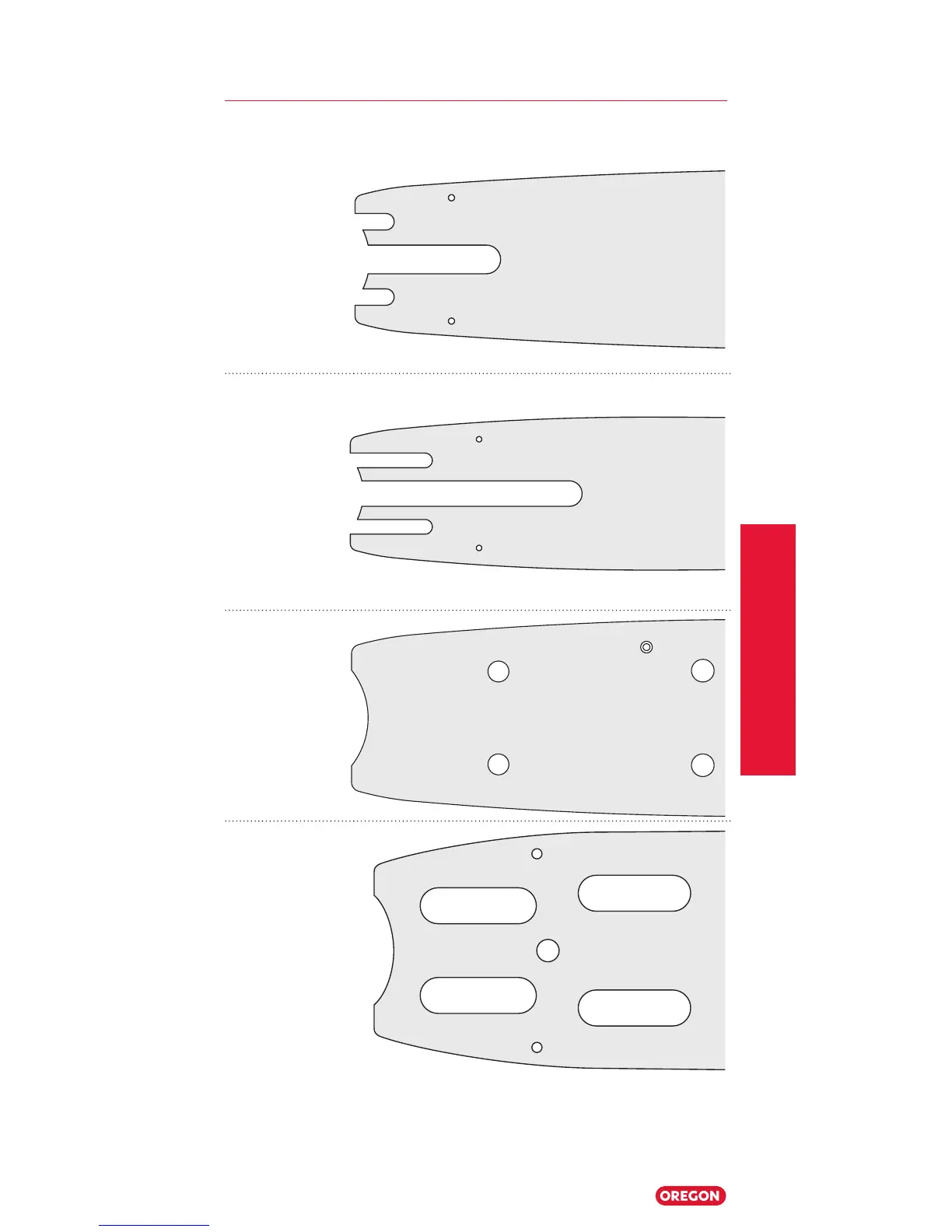

Mechanical Timber Harvesting Handbook 72
T227
1
2
2
T227 3/4”
Drive sprocket
tooth count:
9, 10
Dimensions:

.875"
x 4.000"

.500" x
1.196"
T229
1
2
2
T229 3/4"
Drive sprocket
tooth count:
9, 10
Dimensions:

.880"
x 7.584"

.506" x
2.842"
T230
1
2
2
1
T230 3/4”
Drive sprocket
tooth count:
9, 10
Dimensions:

.562"

.609"
V127
1
1
2
2
3
Drive
sprocket
tooth count:
9, 10
Dimensions:

.812" x
2.577"

.812" x
2.453"

.500"
3/4" Pitch Guide Bar Mounts
