Guide Bar
75 Mechanical Timber Harvesting Handbook
P155
1 1
1 1
2
2
2
1 1
1 1
2
2
2
Drive sprocket
tooth count: 15
Sprocket end
dimension:

.656"
Idler end
dimension:

.531"
P207
P207
2
2
2
1
11
1
P207
2
2
2
1
11
1
Drive sprocket
tooth count: 15
Sprocket end
dimension:

.781"
Idler end
dimension:

.531"

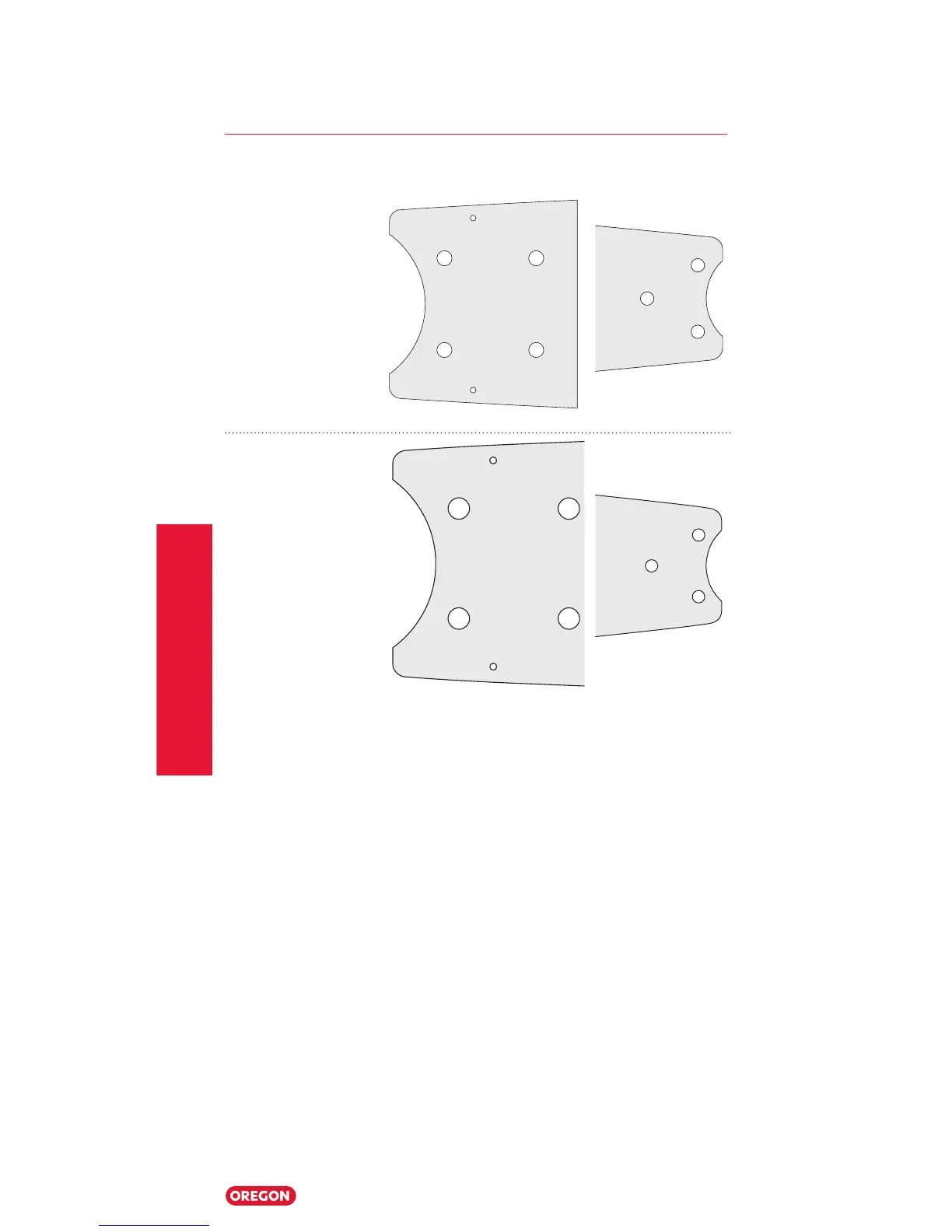

3/4" Pitch Guide Bar Mounts
Asymmetrical Double-Ended
